Insulated shaft Type 增量型編碼器
Encoder/Insulated shaft
EC12S series
Rotary encoder switch/Insulated shaft
MAIN FUNCTIONS
Page turning, frequency modulation, dimming, tuning quantity, speed adjustment, temperature adjustment, menu selection.
APPLICATIONS
Mouse, earphone, radio, electronic toy, electronic cigarette.
Manual
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|
| 工作溫度/Operating Temperature | -20℃~+70℃ |
|---|
| 操作力矩/Shaft Rotation Force | 20gf.cm~200gf.cm |
|---|
| 全回轉角度/Total Rotation Angle | 360º |
|---|
| 額定功率/Power Rating | DC5V |
|---|
| 絕緣電阻/Insulation resistance | More than 100MΩ |
|---|
| 接觸電阻/Contact resistance | 1Ω Max |
|---|
| 耐電壓/Withstand Voltage | For 1 minute at 50V AC |
|---|
| 回轉壽命/Rotational life | 30,000 cycles |
|---|
DIMENSIONS
Unit:mm
| Model | Dimensions |
|---|

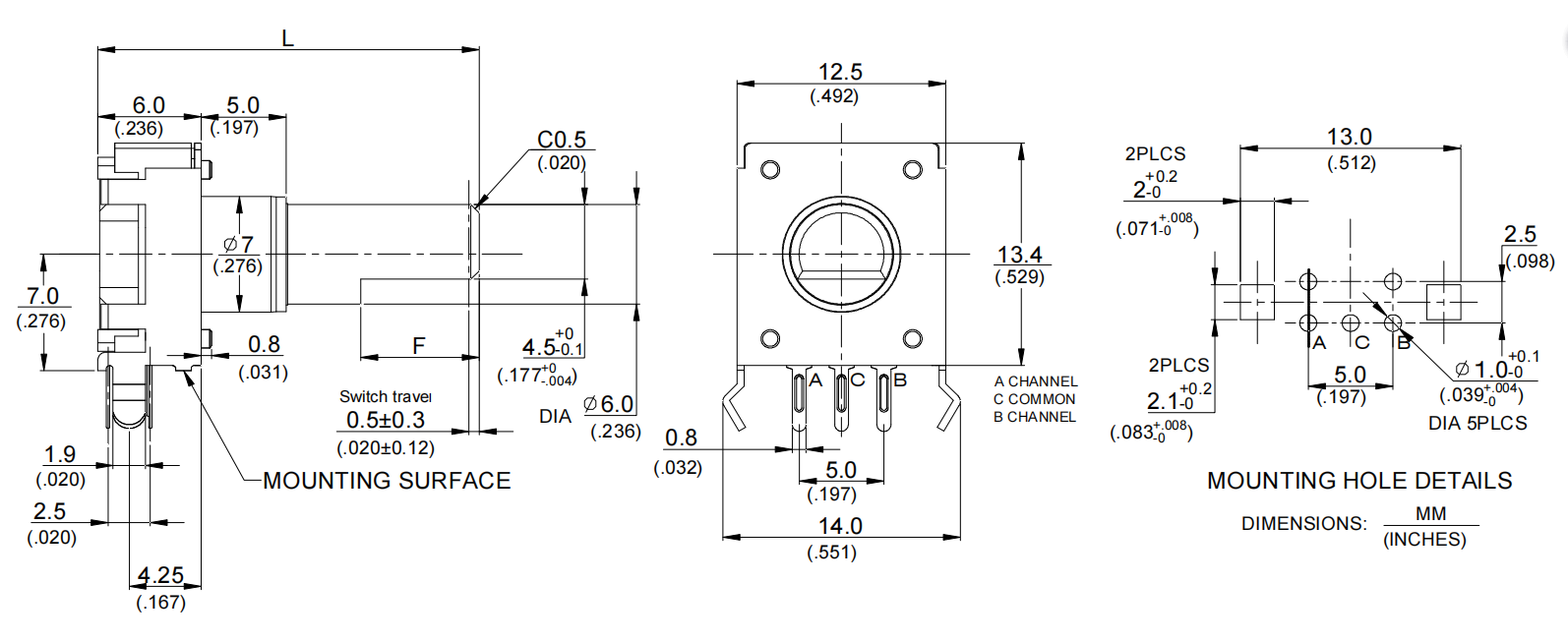

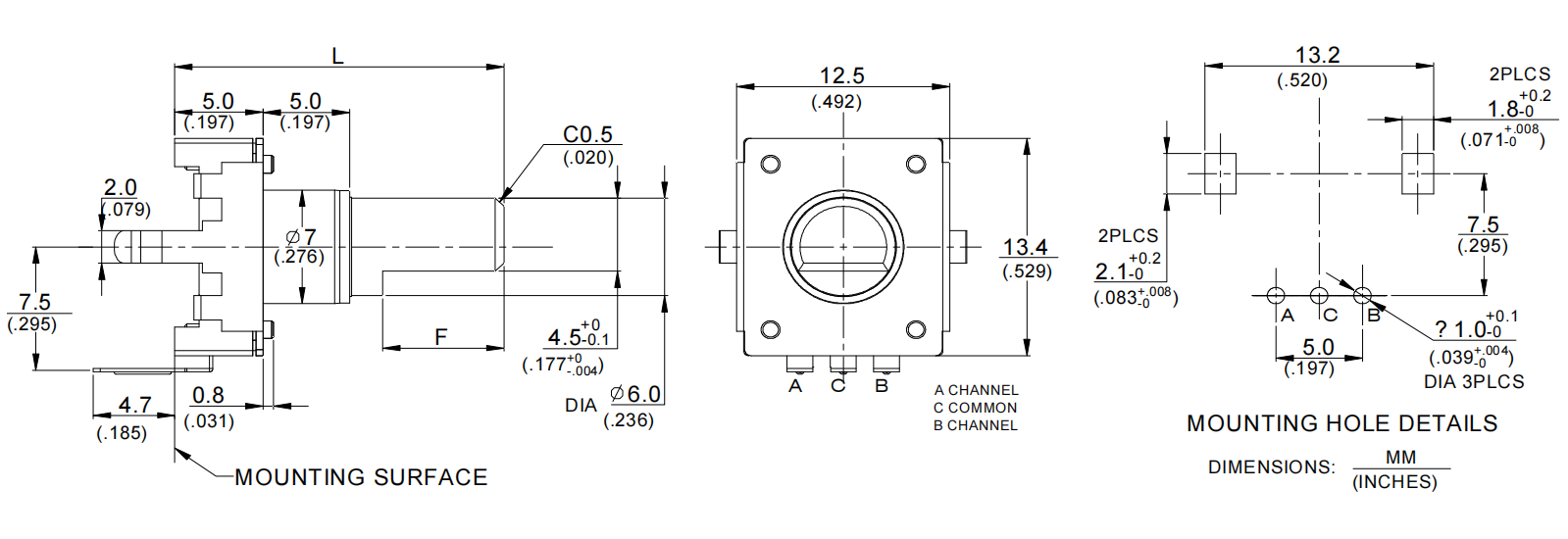

EC1212S
|  |
| Model | Dimensions |
|---|

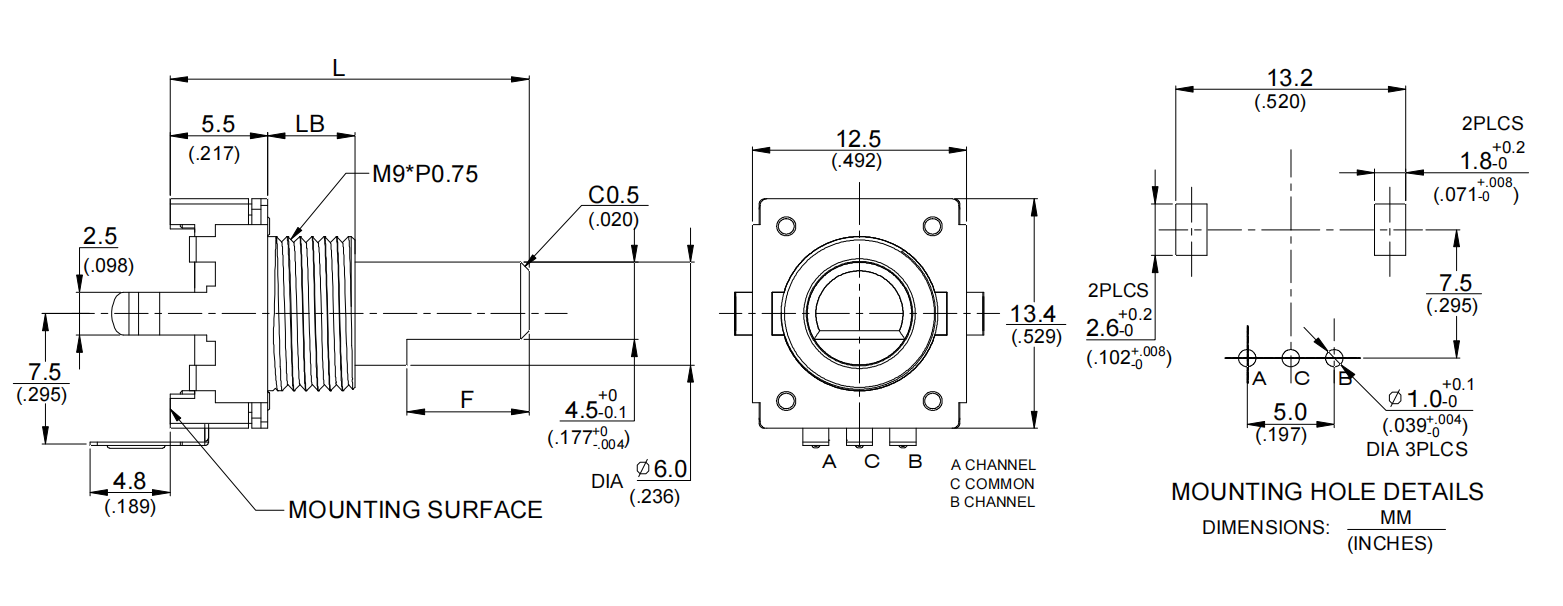

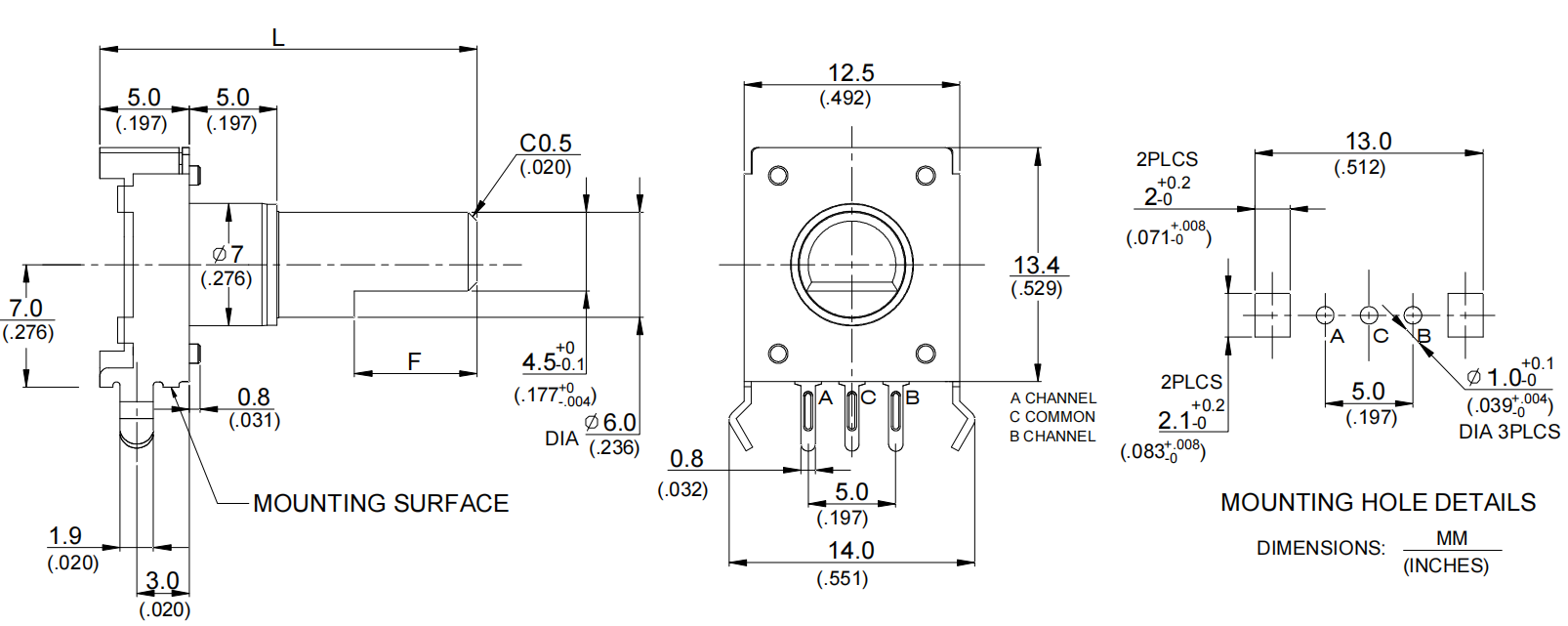

EC1212
|  |
| Model | Dimensions |
|---|

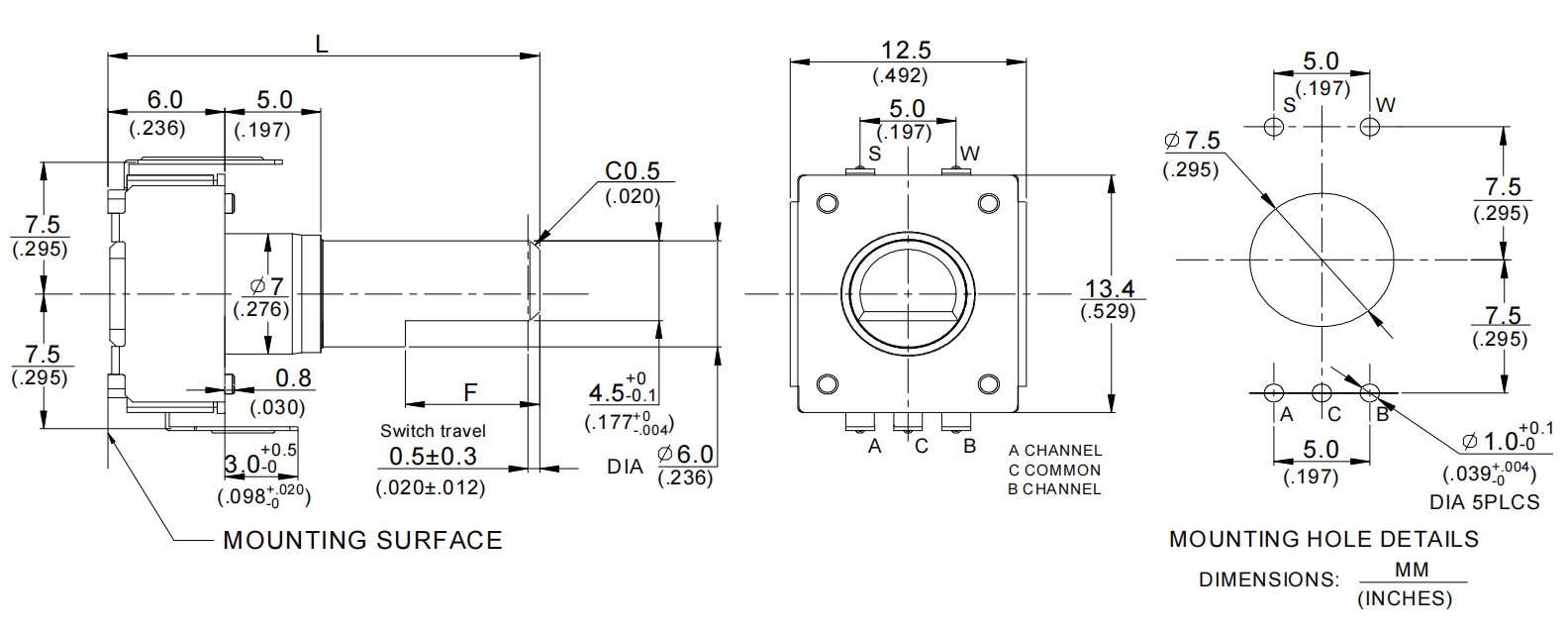

EC1223
|  |
| Model | Dimensions |
|---|

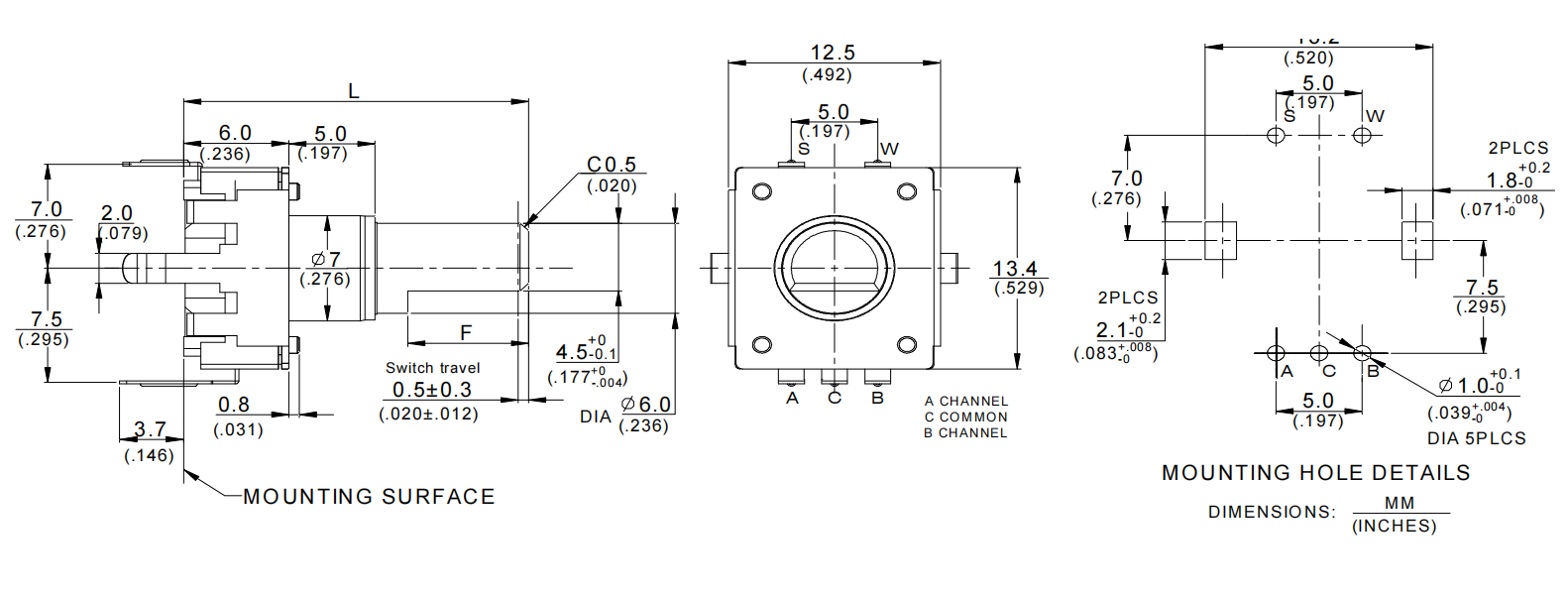

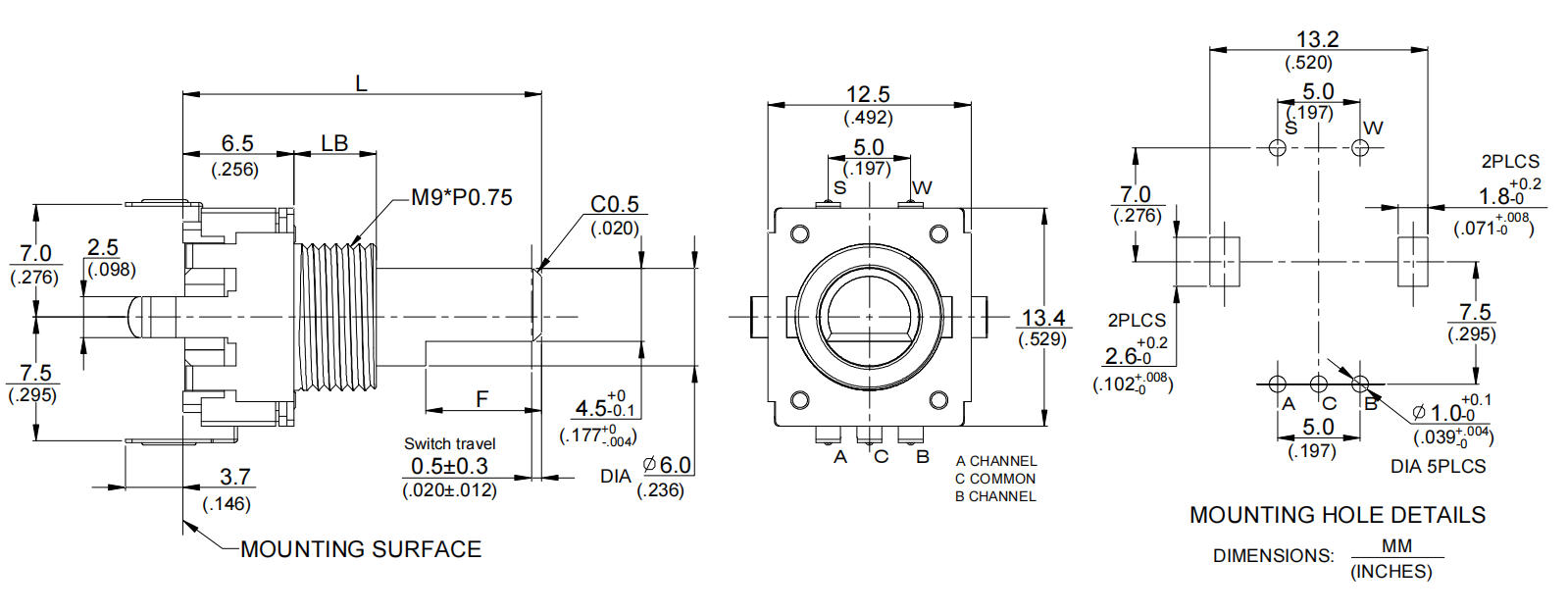

EC1215S
|  |
| Model | Dimensions |
|---|

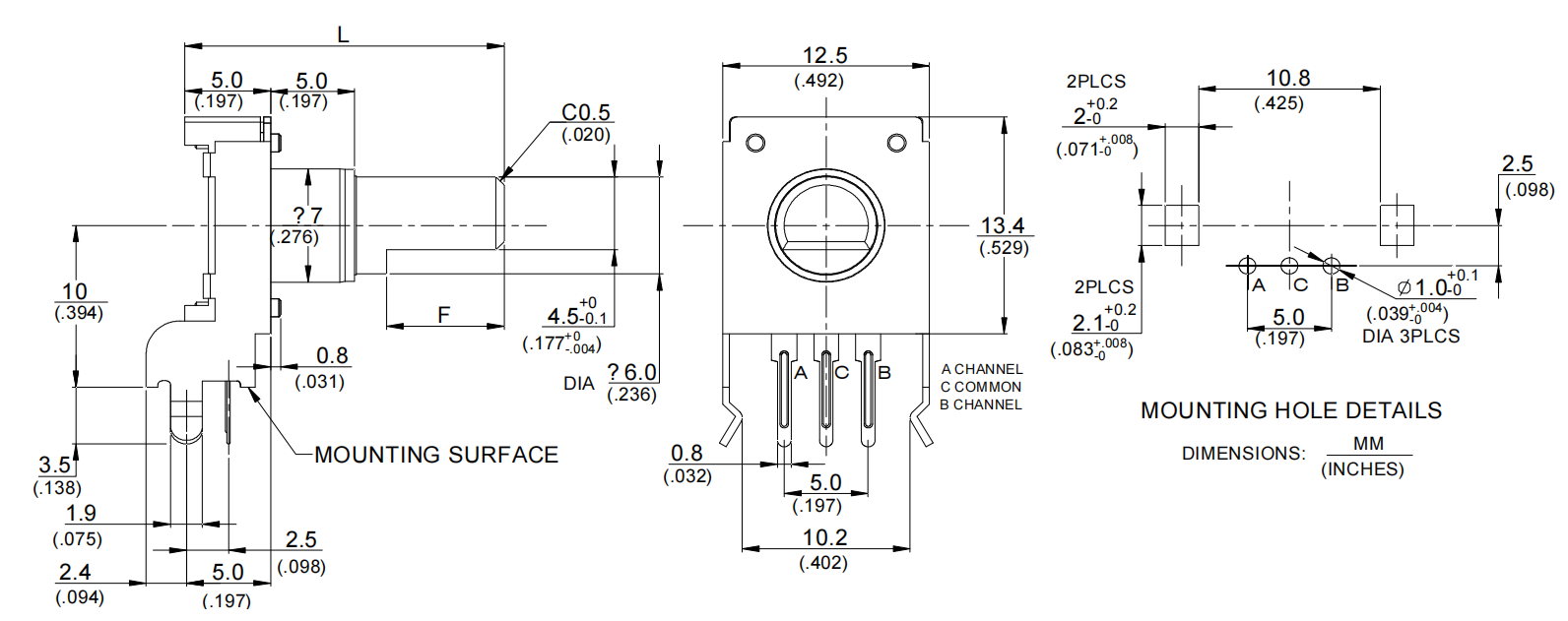

EC1215
|  |
| Model | Dimensions |
|---|

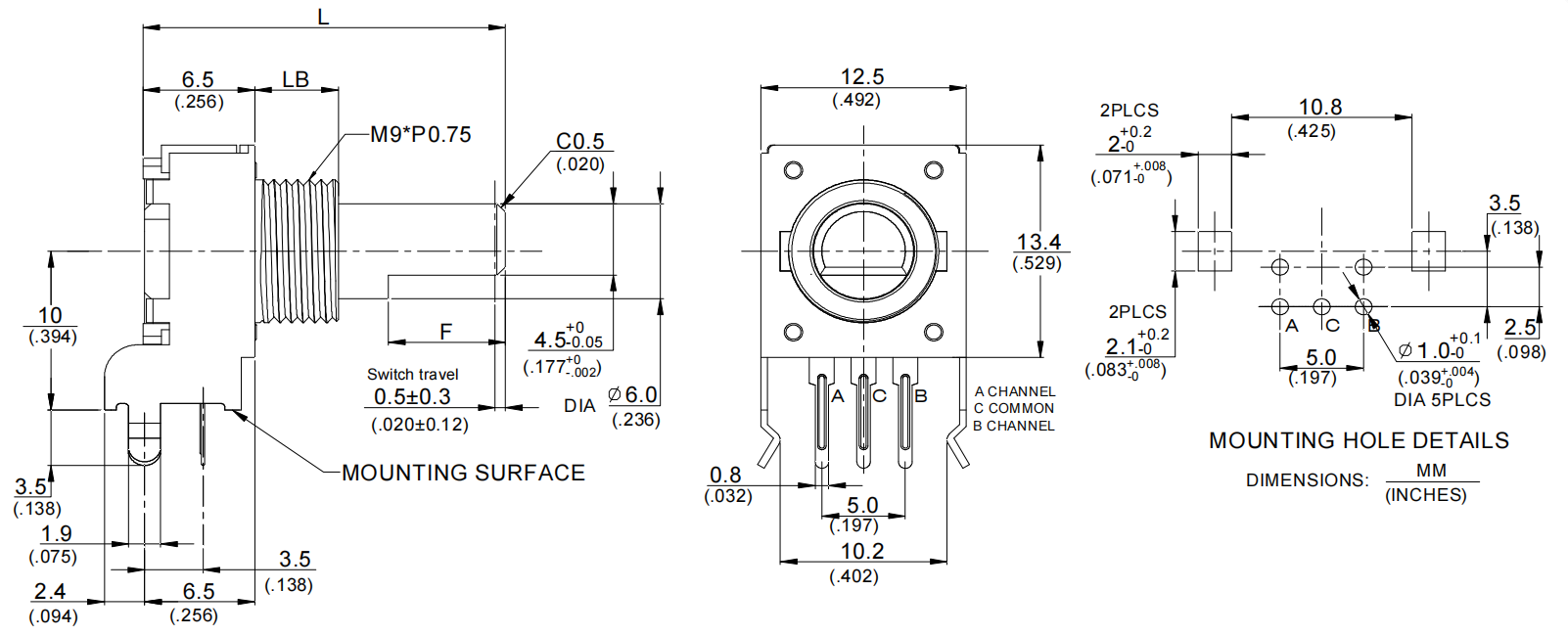

EC1217S
|  |
| Model | Dimensions |
|---|

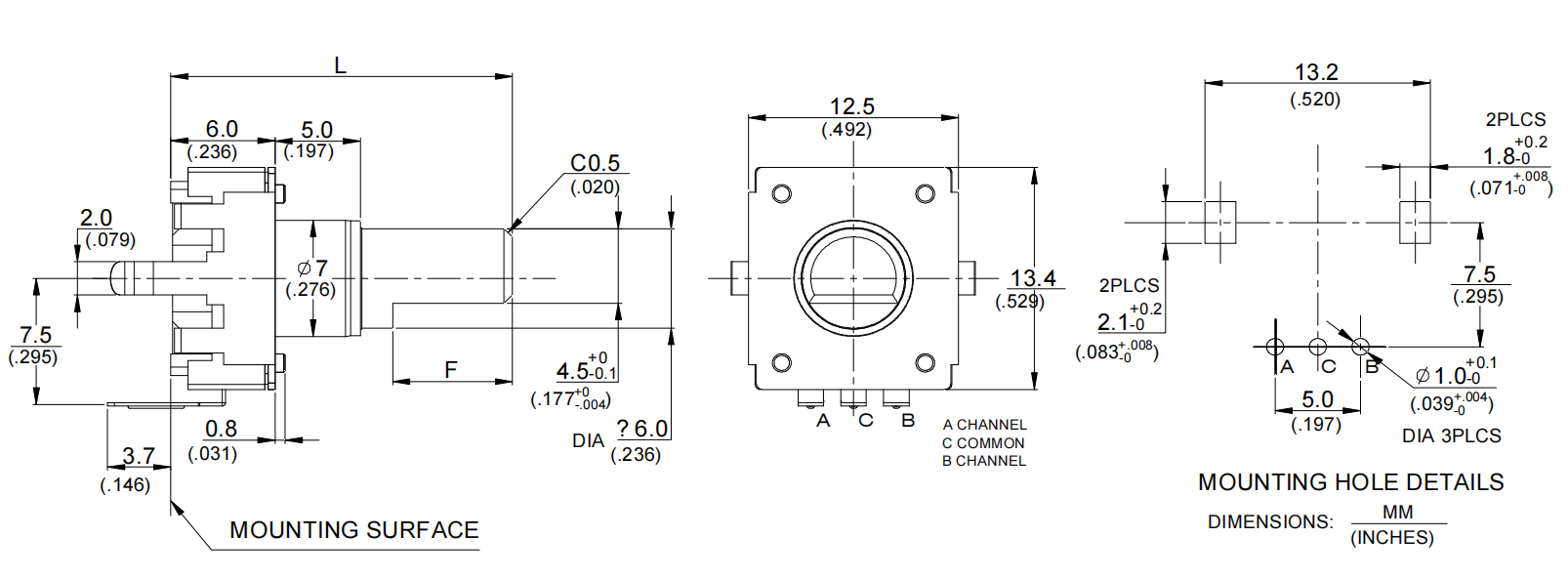

EC1217
|  |
| Model | Dimensions |
|---|

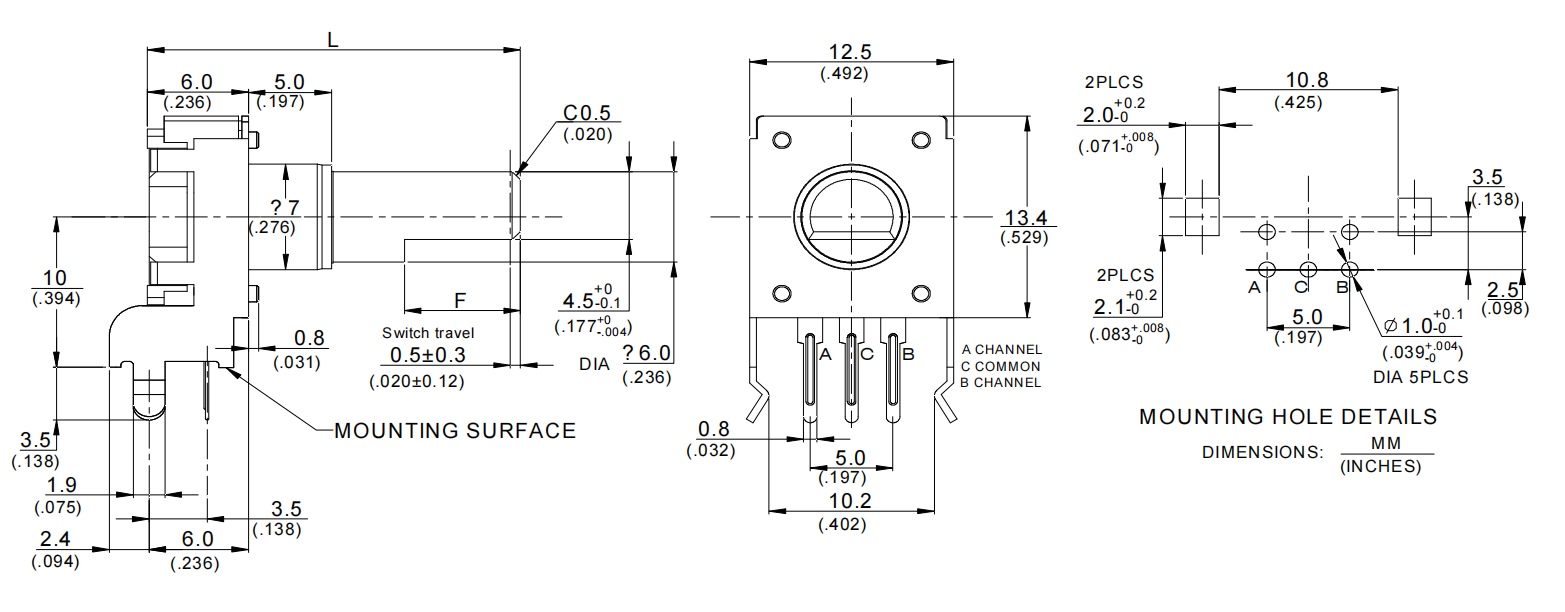

EC1252S
|  |
| Model | Dimensions |
|---|
EC1222S
|  |
| Model | Dimensions |
|---|
EC1222
|  |
| Model | Dimensions |
|---|
EC1225S
|  |
| Model | Dimensions |
|---|
EC1225
|  |
