PIN 排針

PIN2.54-025
2.54mm pitch single row pin

PIN2.54-025

Horizontal SMT / PIN CONNECTOR 1.5/1.7/2.0/2.5mmplastic height FEATURE ‧ 2.54mm pitch ‧ High temperature resistance APPLICATIONS ‧ Used in general connection devices in electronics, electrical appliances, meters, etc.


Manual

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-40℃ to +105℃
絕緣電阻/Insulation resistance

1000MΩ Min

耐壓/Withstand voltage

AC 500V/min

尺寸/Dimension

1.5/1.7/2.0/2.5mm

額定電流/Rated current

3.0APM

接觸阻抗/Contact resistance

20mΩ Max

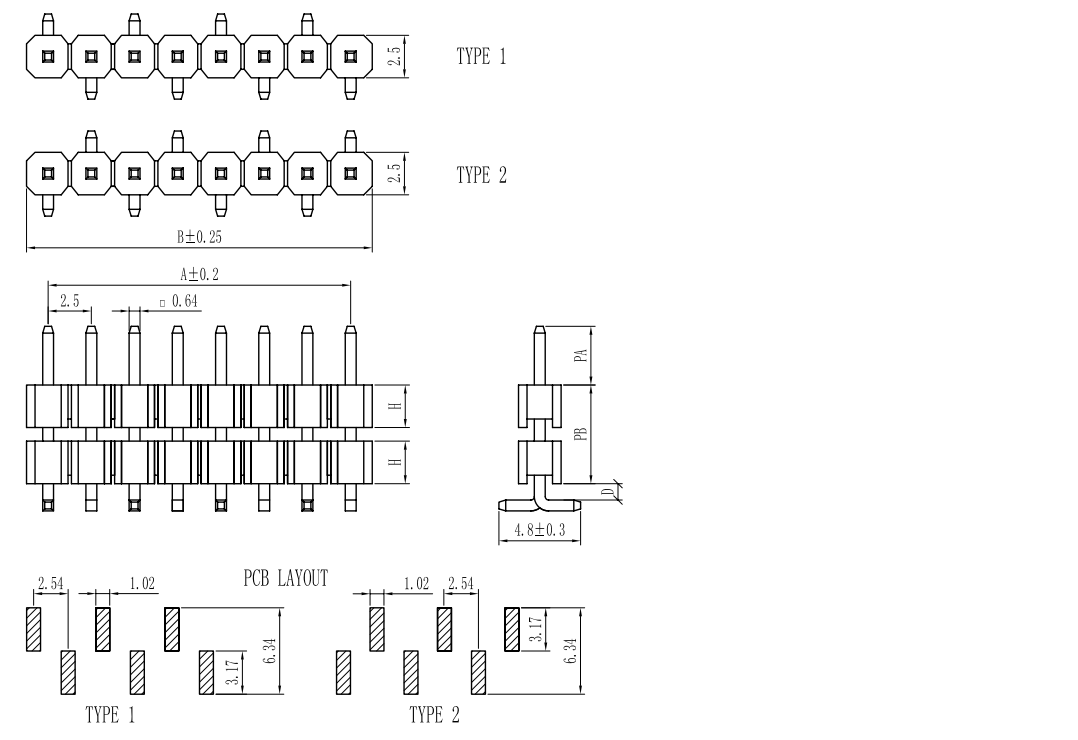

DIMENSIONS



















Unit:mm

ModelDimensions

PIN2.54-025

PIN2.54-025



PIN2.54-025
