PIN 排針

PIN5.08-028

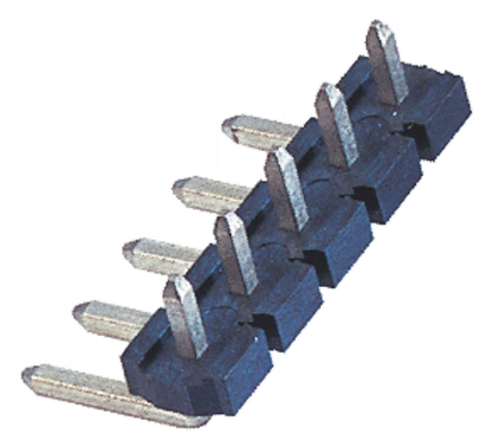

5.08mm pitch single row pin

PIN5.08-028

Horizontal DIP / PIN CONNECTOR 2.5mmplastic height FEATURE ‧ 5.08mm pitch ‧ High temperature resistance APPLICATIONS ‧ Used in general connection devices in electronics, electrical appliances, meters, etc.


Manual

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-40℃ to +105℃
絕緣電阻/Insulation resistance

1000MΩ Min

耐壓/Withstand voltage

AC 500V/min

尺寸/Dimension

2.5mm

額定電流/Rated current

3.0APM

接觸阻抗/Contact resistance

20mΩ Max

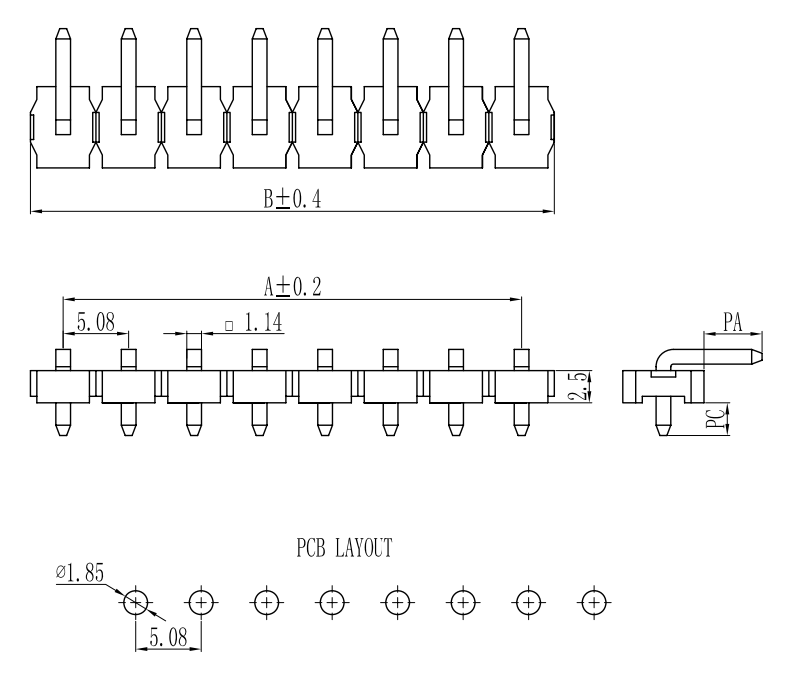

DIMENSIONS




















Unit:mm

ModelDimensions

PIN5.08-028

PIN5.08-028



PIN5.08-028
