Metal shaft Type 中空軸型編碼器

EC16S series
Encoder/Metal shaft

EC16S series

Rotary encoder switch/Metal shaft MAIN FUNCTIONS Page turning, frequency modulation, dimming, tuning quantity, speed adjustment, temperature adjustment, menu selection. APPLICATIONS Mouse, earphone, radio, electronic toy, electronic cigarette.


Manual

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度/Operating Temperature-20~+70
操作力矩/Shaft Rotation Force20gf.cm~200gf.cm
全回轉角度/Total Rotation Angle 360º
額定功率/Power RatingDC5V
絕緣電阻/Insulation resistanceMore than 100MΩ
接觸電阻/Contact resistance1Ω Max
耐電壓/Withstand VoltageFor 1 minute at 300V AC
回轉壽命/Rotational life30,000 cycles

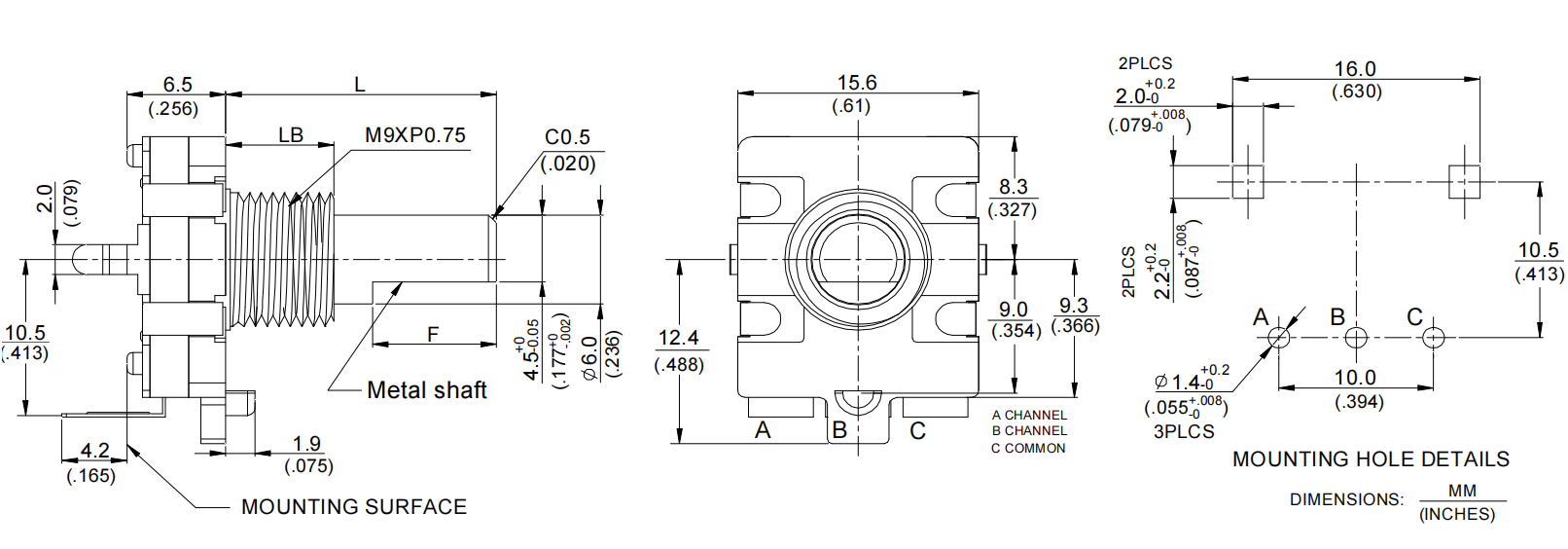

DIMENSIONS

Unit:mm

ModelDimensions

EC1612S-FAEC16S series


EC16S series
ModelDimensions

      EC1612-FA    EC16S series


EC16S series
