MULTI-FUNCTION SWITCH 多功能開關

RS16S series
Multiple encoding switch

RS16S series

Multiple encoding switch MAIN FUNCTIONS Page turning, frequency modulation, dimming, tuning quantity, speed adjustment, temperature adjustment, menu selection. APPLICATIONS Mouse, earphone, radio, electronic toy, electronic cigarette.


Manual

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度/Operating Temperature-20~+70
操作力矩/Shaft Rotation Force20gf.cm~200gf.cm
全回轉角度/Total Rotation Angle 360º
額定功率/Power RatingDC5V
絕緣電阻/Insulation resistanceMore than 100MΩ
接觸電阻/Contact resistance3Ω Max
耐電壓/Withstand VoltageFor 1 minute at 300V AC
回轉壽命/Rotational life30,000 cycles

DIMENSIONS

Unit:mm

ModelDimensions

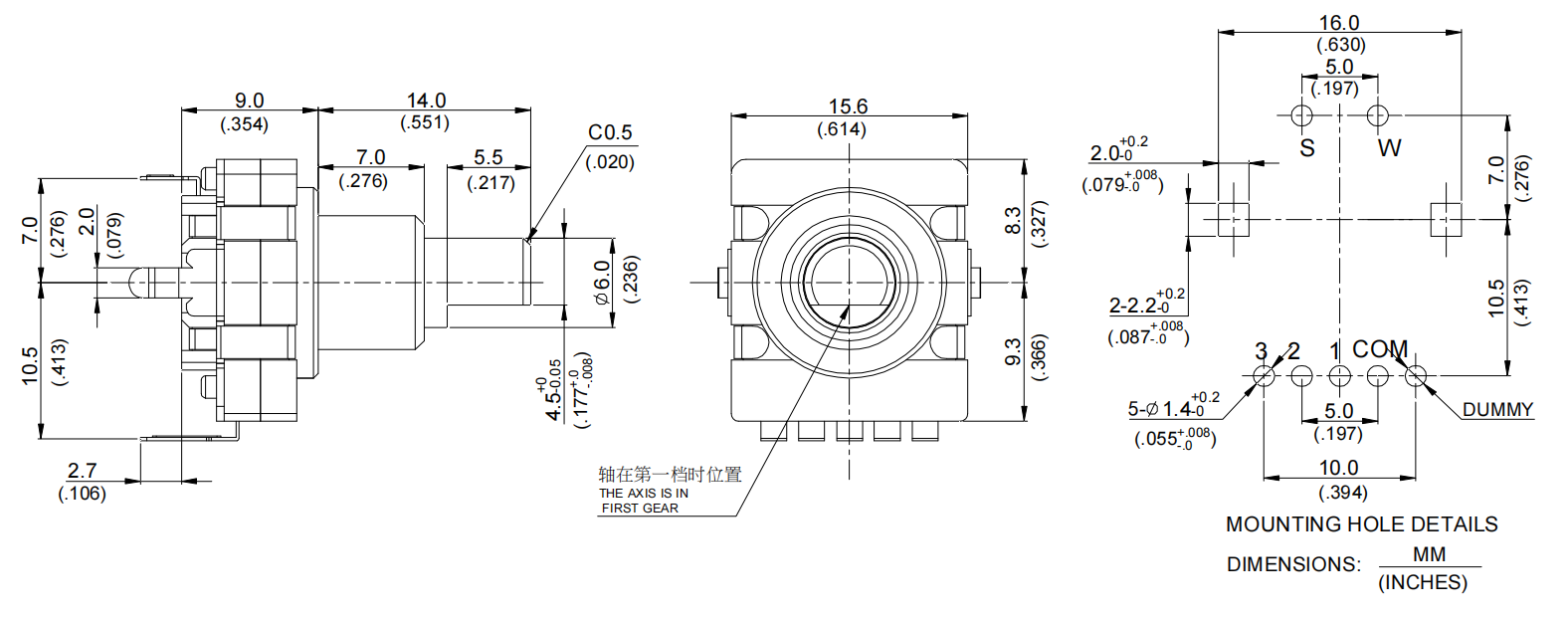

      RS1614   RS16S series


RS16S series
ModelDimensions

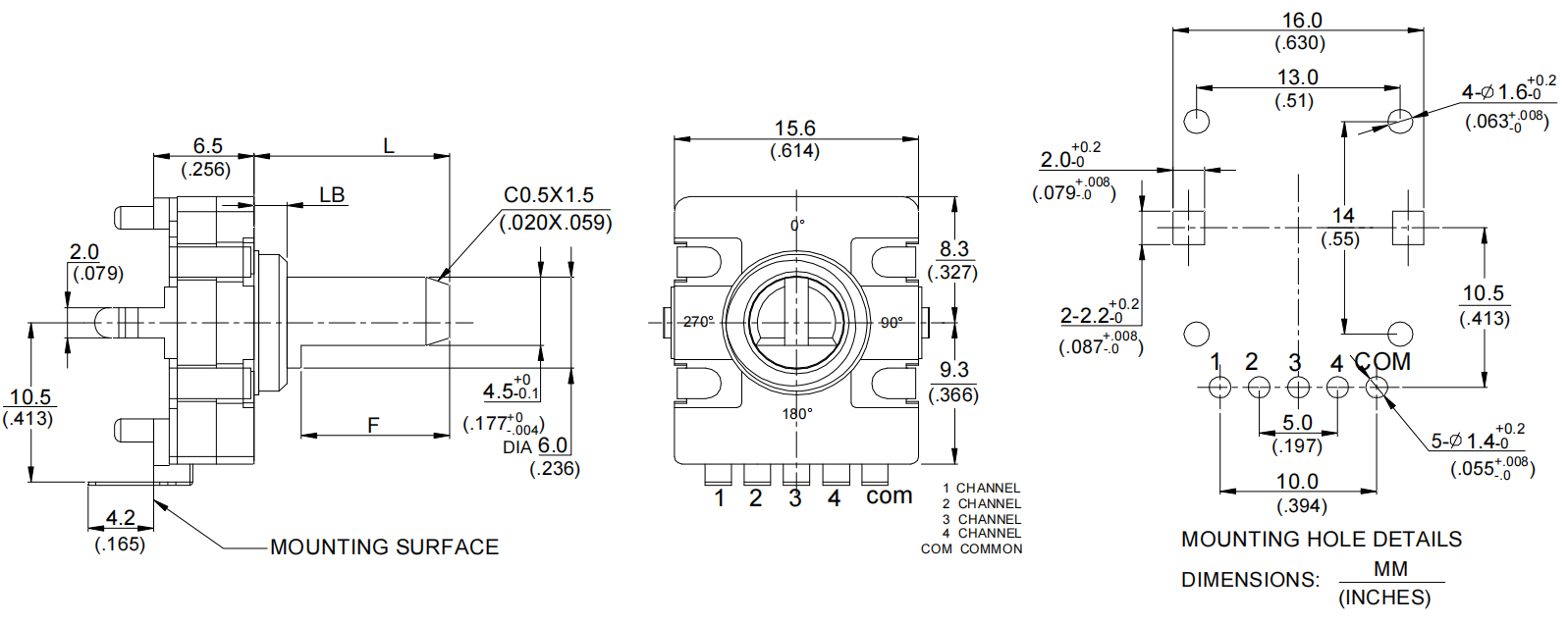

      RS1616S    RS16S series


RS16S series
