MULTI-FUNCTION SWITCH 多功能開關

RS17 series
Multiple encoding switch

RS17 series

Multiple encoding switch MAIN FUNCTIONS Page turning, frequency modulation, dimming, tuning quantity, speed adjustment, temperature adjustment, menu selection. APPLICATIONS Mouse, earphone, radio, electronic toy, electronic cigarette.


Manual

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度/Operating Temperature-10~+70
操作力矩/Shaft Rotation Force200gf.cm~700gf.cm
全回轉角度/Total Rotation Angle 360º
額定功率/Power RatingDC16V
絕緣電阻/Insulation resistanceMore than 100MΩ
接觸電阻/Contact resistance100mΩ Max
耐電壓/Withstand VoltageFor 1 minute at 100V AC
回轉壽命/Rotational life30,000 cycles

DIMENSIONS

Unit:mm

ModelDimensions

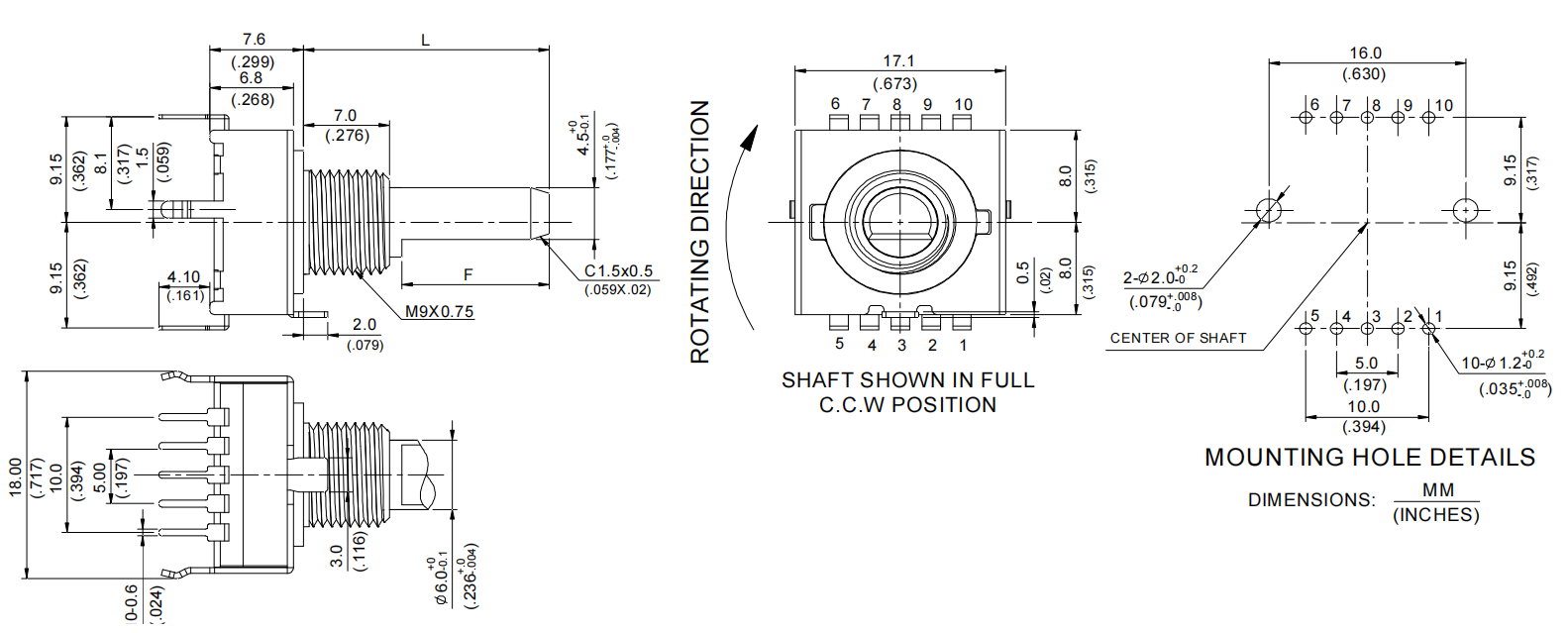

RS1712NRS17 series


RS17 series
ModelDimensions

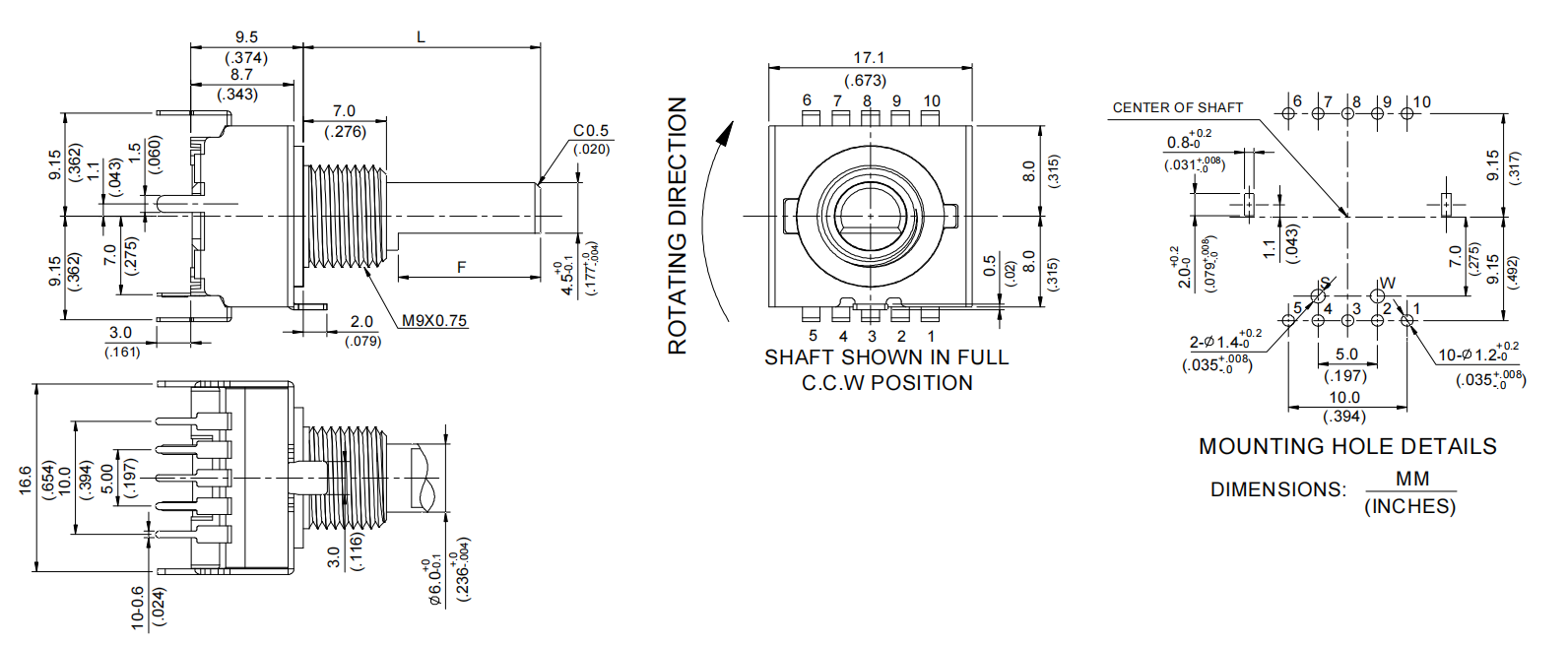

      RS1712G     RS17 series


RS17 series
ModelDimensions

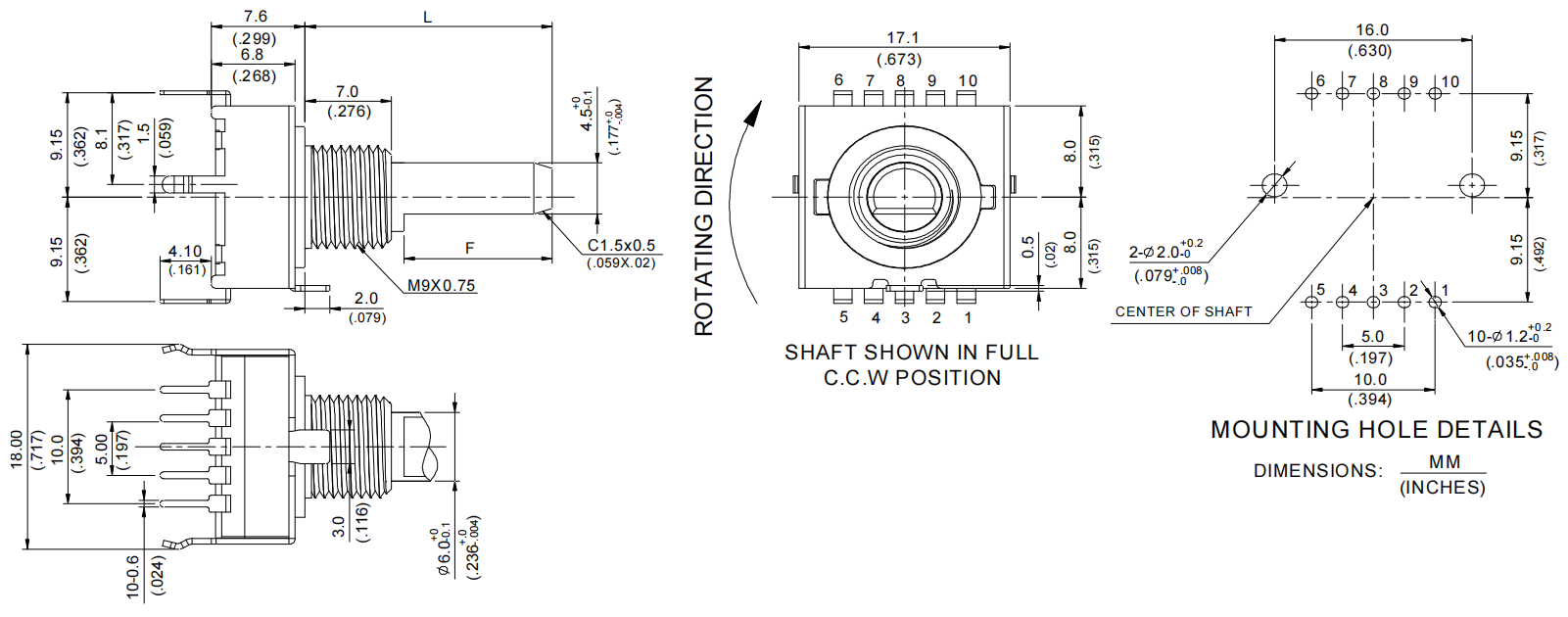

      RS1712NS  RS17 series


RS17 series
ModelDimensions

    RS1712GS    RS17 series


RS17 series
