Terminal line series

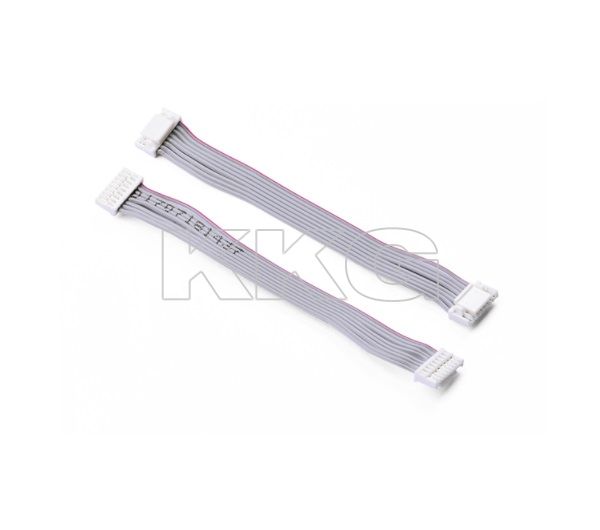

CAE-387
Terminal line
FEATURE
‧ 1.25mm
‧ 8PIN
‧ Flat cable assembly
APPLICATIONS
‧Painters, scanners, photocopiers, stereos, LCD appliances, fax machines, different types of DVD players
Manual
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|
| 觸點最大電流/Maximum contact current | 2.00A |
|---|
| 工作電壓/Operating Voltage | 300V |
|---|
| 長度/length | L=80mm |
|---|
| 温度/temperature range | 15ºC~+105ºC |
|---|
| 導體/conductor | 鍍錫銅/Tinned copper |
|---|
DIMENSIONS
Unit:mm
| Model | Dimensions |
|---|
CAE-387 |
|
