IPX7/8-MICRO SWITCH

M3-B series
M3-B series
M3-B series

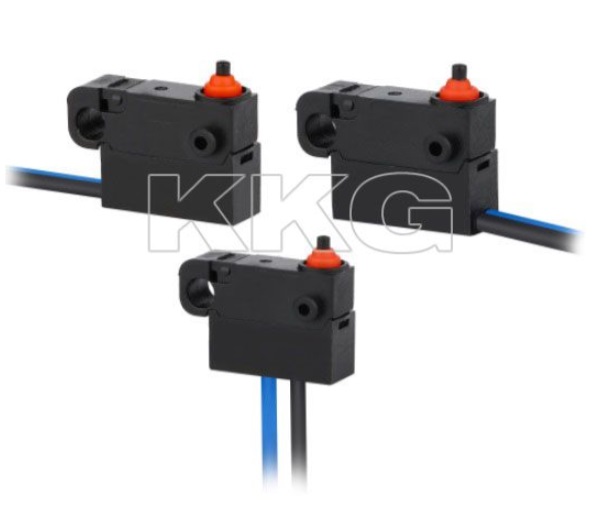

Waterproof micro switch series

M3-B series

IP67Waterproof micro switch FEATURE ‧ 18.50mm*6.80mm ‧ DIP ‧ Reflow soldering APPLICATIONS ‧ Mainly used in the three-dimensional design of mobile phones, CD players, wireless phones, MP3 players, digital laptops, DVDs, digital cameras, etc...


Manual

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-40°C ~ +85°C
操作力/Operating force130gf
機械壽命/Mechanical Life100,000 Cycles
接觸電阻/Contact Resistance50MΩ
絕緣電阻/Insulation resistance100 MΩ Mim. 250V DC
承受電壓/Withatand Voltage3A/12VDC

DIMENSIONS

ModelDimensions
M3-B-1M3-B series


M3-B series
