IPX7/8-MICRO SWITCH

M18 series
M18 series

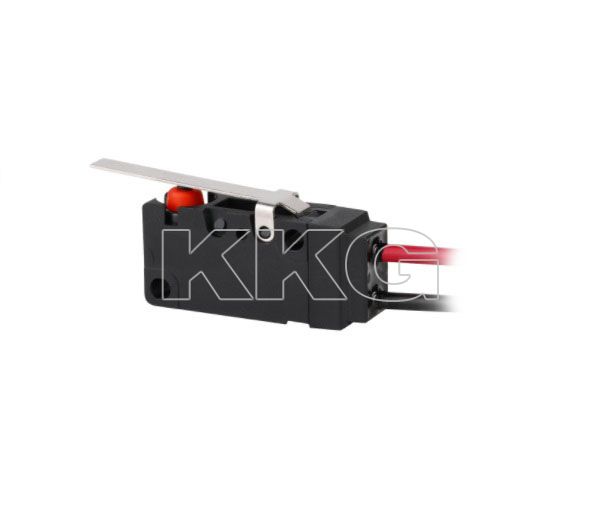

Waterproof micro switch series

M18 series

IP67 Waterproof micro switch FEATURE ‧ 33.00mm*15.90mm ‧ DIP ‧ Reflow soldering APPLICATIONS ‧ Mainly used in the three-dimensional design of mobile phones, CD players, wireless phones, MP3 players, digital laptops, DVDs, digital cameras, etc...


Manual

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-40°C ~ +85°C
操作力/Operating force130gf
機械壽命/Mechanical Life500,000 Cycles
接觸電阻/Contact Resistance50MΩ
絕緣電阻/Insulation resistance100 MΩ Mim. 250V DC
承受電壓/Withatand Voltage8A/125VDC

DIMENSIONS


ModelDimensions
M18-1M18 series
