TYPE-C USB 2.0 /3.0插座

TYPE-C-02-016/017
USB 3.1Waterproof TYPE-C Connector

TYPE-C-02-016/017

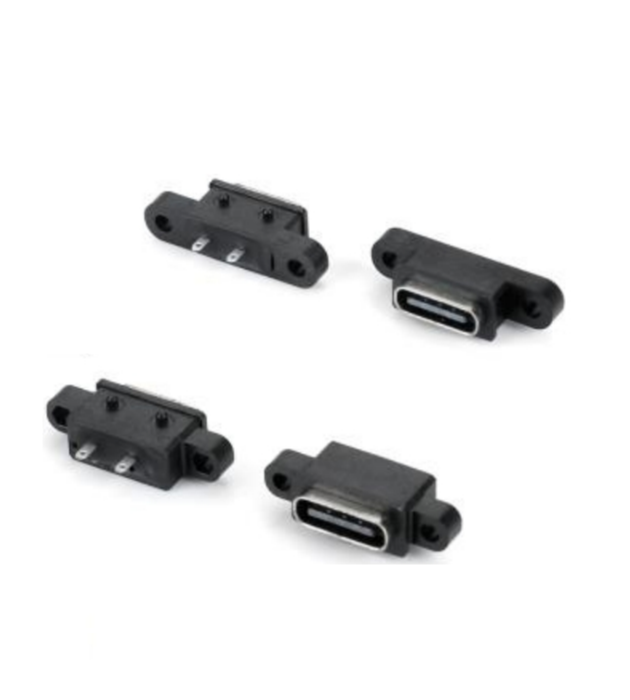

Type-C-2P soldering wire waterproof female connector with threaded hole/threaded nut, length 7.25mm FEATURE ‧ 19.56mm*7.25mm ‧ Pin No.: 2 pin ‧ Wire bonding type ‧ Waterproof IPX7 APPLICATIONS ‧ Mobile Power Supply;Charger;Storage (Personal Cloud, Network-Attached Storage);Smartphone;Notebook (Laptops);Hybrid-Detachable (NB-Tablets);Docking;Peripherals (Monitor/Display, Projector…);Automotive Infotainment;Home Entertainment


Manual

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating5.0A MAX
额定电压/Voltage Rating100VAC
接触电阻/Contact Resistance40 millionhm max
尺寸/Dimension19.56mm*7.25mm
温度/temperature range-30℃~85℃
绝缘电阻/Insulation Resistance100 megohms min



DIMENSIONS

Unit:mm

ModelDimensions
TYPE-C-02-016

TYPE-C-02-016/017

TYPE-C-02-016/017


ModelDimensions
TYPE-C-02-017TYPE-C-02-016/017TYPE-C-02-016/017
