TYPE-C USB 2.0 /3.0插座

TYPE-C-03-088

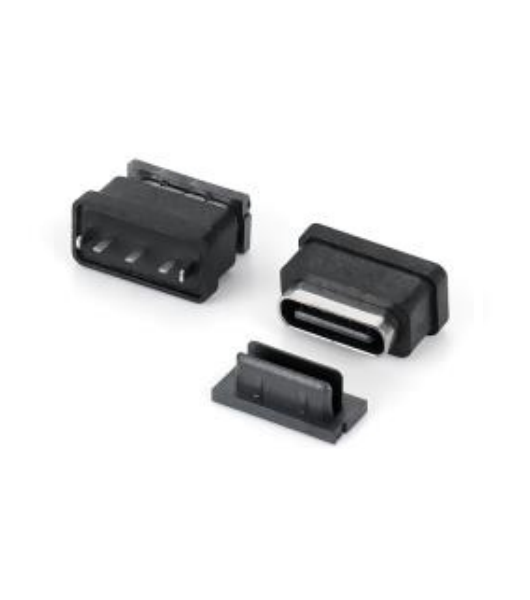

USB 3.1Waterproof TYPE-C Connector

TYPE-C-03-088

TYPE-C-3P vertical plug waterproof female socket H=6.8mm FEATURE ‧10.55mm*5.05mm ‧ Pin No.: 3 pin ‧ Vertica ‧ Waterproof IPX7 APPLICATIONS ‧ Mobile Power Supply;Charger;Storage (Personal Cloud, Network-Attached Storage);Smartphone;Notebook (Laptops);Hybrid-Detachable (NB-Tablets);Docking;Peripherals (Monitor/Display, Projector…);Automotive Infotainment;Home Entertainment


Manual

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating5.0A MAX
额定电压/Voltage Rating100VAC
接触电阻/Contact Resistance40 millionhm max
尺寸/Dimension10.55mm*5.05mm
温度/temperature range-30℃~85℃
绝缘电阻/Insulation Resistance100 megohms min



DIMENSIONS

Unit:mm

ModelDimensions
TYPE-C-03-088

TYPE-C-03-088

TYPE-C-03-088
