TYPE-C USB 2.0 /3.0插座

TYPE-C-06-007/008

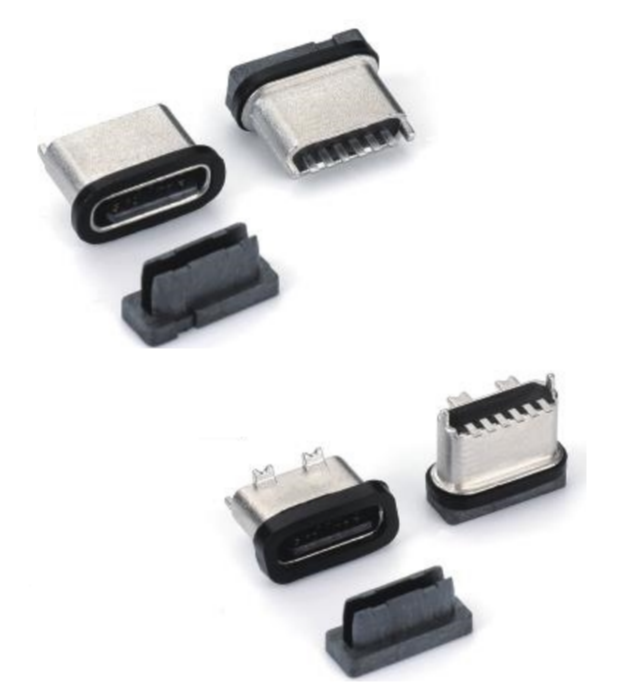

USB 3.1Waterproof TYPE-C Connector

TYPE-C-06-007/008

TYPE-C6P waterproof female socket IPX8 vertical plug L=7.55, tongue exposed 0.75 (powder gold shell)/powder metallurgy + waterproof ring FEATURE ‧ 10.44mm*8.90mm ‧ Pin No.: 10 pin ‧ Vertica ‧ Waterproof IPX7/ IPX8 APPLICATIONS ‧ Mobile Power Supply;Charger;Storage (Personal Cloud, Network-Attached Storage);Smartphone;Notebook (Laptops);Hybrid-Detachable (NB-Tablets);Docking;Peripherals (Monitor/Display, Projector…);Automotive Infotainment;Home Entertainment


Manual

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating5.0A MAX
额定电压/Voltage Rating100VAC
接触电阻/Contact Resistance40 millionhm max
尺寸/Dimension

10.44mm*8.90mm

温度/temperature range-30℃~85℃
绝缘电阻/Insulation Resistance100 megohms min



DIMENSIONS

Unit:mm

ModelDimensions

TYPE-C-06-007

TYPE-C-06-007/008

TYPE-C-06-007/008


ModelDimensions

TYPE-C-06-008TYPE-C-06-007/008

TYPE-C-06-007/008
