TYPE-C USB 2.0 /3.0插座

TYPE-C-06-035

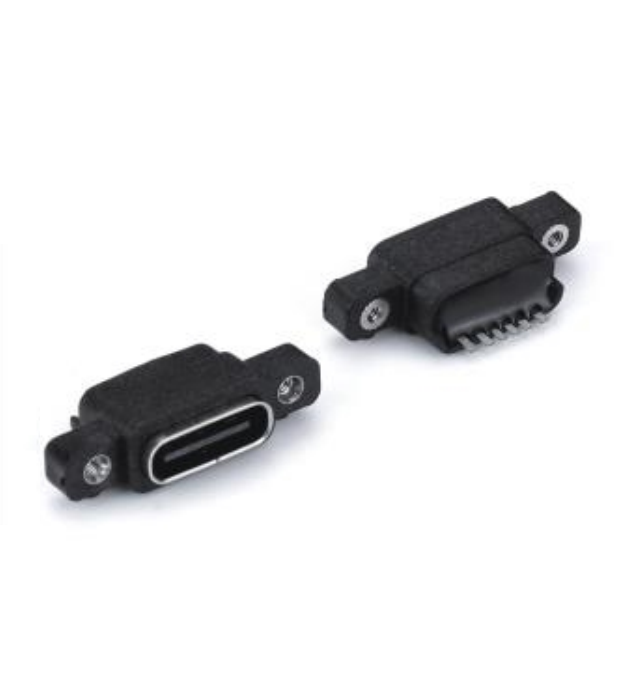

USB 3.1Waterproof TYPE-C Connector

TYPE-C-06-035

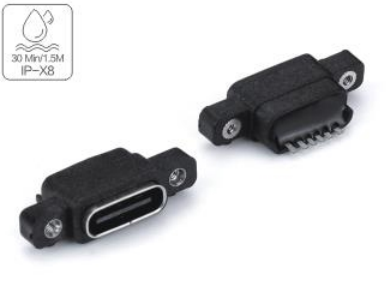

Waterproof TYPE-CF6P Locking Shell SMT8.7L FEATURE ‧ 18.50mm*8.70mm ‧ Pin No.: 10 pin ‧ Lock-case type ‧ Waterproof IPX7 APPLICATIONS ‧ Mobile Power Supply;Charger;Storage (Personal Cloud, Network-Attached Storage);Smartphone;Notebook (Laptops);Hybrid-Detachable (NB-Tablets);Docking;Peripherals (Monitor/Display, Projector…);Automotive Infotainment;Home Entertainment


Manual

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating5.0A MAX
额定电压/Voltage Rating100VAC
接触电阻/Contact Resistance40 millionhm max
尺寸/Dimension18.50mm*8.70mm
温度/temperature range-30℃~85℃
绝缘电阻/Insulation Resistance100 megohms min

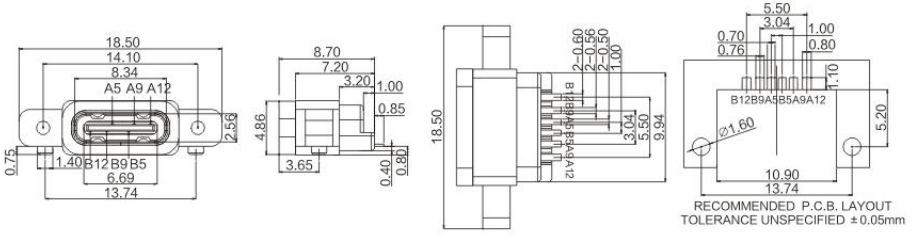

DIMENSIONS

Unit:mm

ModelDimensions
TYPE-C-06-035

TYPE-C-06-035

TYPE-C-06-035
