TYPE-C USB 2.0 /3.0插座

TYPE-C-06-061/075

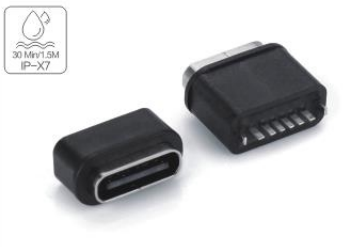

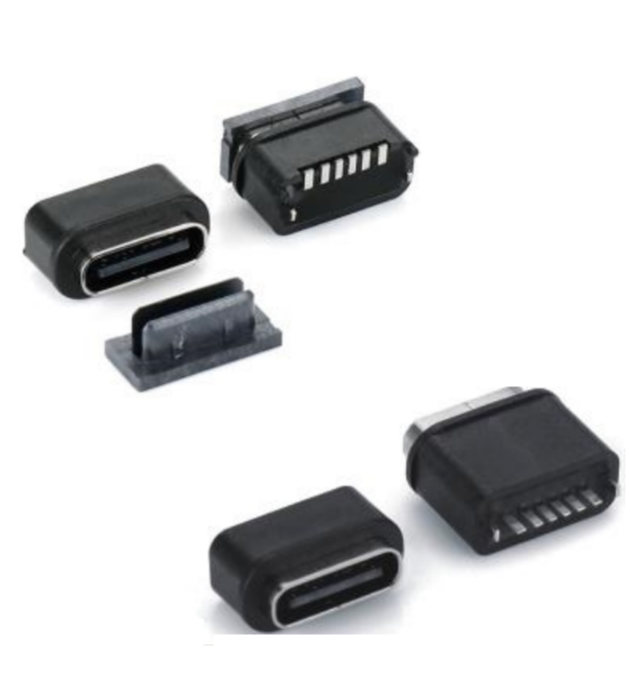

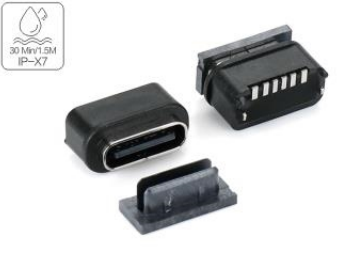

USB 3.1Waterproof TYPE-C Connector

TYPE-C-06-061/075

TYPE-C-6P Waterproof Female Socket Vertical Mounting Board/Plug-in Board H=6.0-6.8-8.8-9.3-10.0-10.5-11.0 FEATURE ‧8.94mm*6.10mm ‧ Pin No.: 6 pin ‧ Vertica ‧ Waterproof IPX7 APPLICATIONS ‧ Mobile Power Supply;Charger;Storage (Personal Cloud, Network-Attached Storage);Smartphone;Notebook (Laptops);Hybrid-Detachable (NB-Tablets);Docking;Peripherals (Monitor/Display, Projector…);Automotive Infotainment;Home Entertainment


Manual

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating5.0A MAX
额定电压/Voltage Rating100VAC
接触电阻/Contact Resistance40 millionhm max
尺寸/Dimension8.94mm*6.10mm
温度/temperature range-30℃~85℃
绝缘电阻/Insulation Resistance100 megohms min

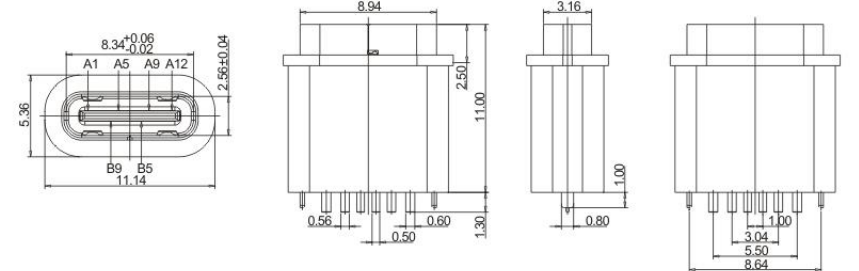

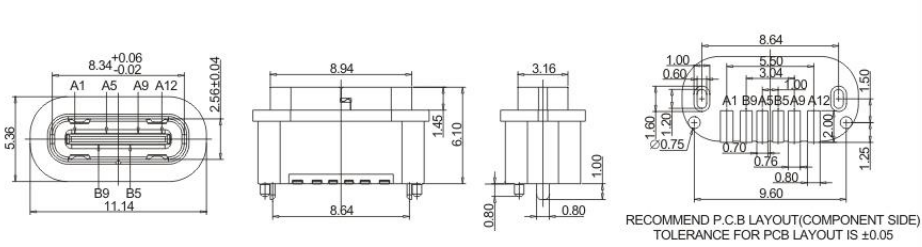

DIMENSIONS

Unit:mm

ModelDimensions

TYPE-C-06-061

TYPE-C-06-061/075

TYPE-C-06-061/075


ModelDimensions

TYPE-C-06-033TYPE-C-06-061/075

TYPE-C-06-061/075
