TYPE-C USB 2.0 /3.0插座

TYPE-C-16-019/20

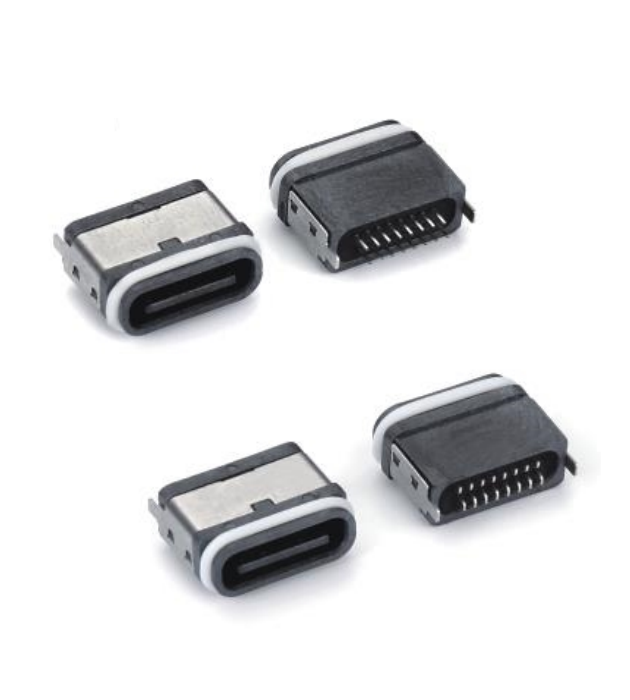

USB 3.1Waterproof TYPE-C Connector

TYPE-C-16-019/20

TYPE-C16P female socket, waterproof IPX8, two-pin vertical plug/vertical paste, L=7.6, all plastic FEATURE ‧10.04mm*7.45mm ‧ Pin No.: 10 pin ‧ Vertica ‧ Waterproof IPX8 APPLICATIONS ‧ Mobile Power Supply;Charger;Storage (Personal Cloud, Network-Attached Storage);Smartphone;Notebook (Laptops);Hybrid-Detachable (NB-Tablets);Docking;Peripherals (Monitor/Display, Projector…);Automotive Infotainment;Home Entertainment


Manual

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating5.0A MAX
额定电压/Voltage Rating100VAC
接触电阻/Contact Resistance40 millionhm max
尺寸/Dimension10.04mm*7.45mm
温度/temperature range-30℃~85℃
绝缘电阻/Insulation Resistance100 megohms min



DIMENSIONS

Unit:mm

ModelDimensions
TYPE-C-16-019

TYPE-C-16-019/20

TYPE-C-16-019/20


ModelDimensions
TYPE-C-16-020TYPE-C-16-019/20TYPE-C-16-019/20
