Micro/Mini USB MICRO USB插座

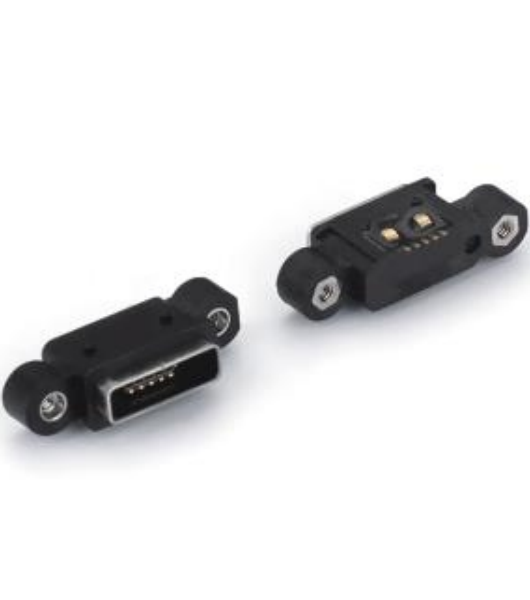

Waterproof Micro 5p-05-004
IP67 Micro5P BF SMT

Waterproof Micro 5p-05-004

Waterproof Micro 5P ABF board with SMD lock housing type 6.0L FEATURE ‧15.10 mm*4.83mm ‧ Pin No.: 5pin ‧ Top Mount ‧ Waterproof IPX7 APPLICATIONS ‧ Mobile Power Supply;Charger;Storage (Personal Cloud, Network-Attached Storage);Smartphone;Notebook (Laptops);Hybrid-Detachable (NB-Tablets);Docking;Peripherals (Monitor/Display, Projector…);Automotive Infotainment;Home Entertainment


Manual

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating5.0A MAX
额定电压/Voltage Rating100VAC
接触电阻/Contact Resistance40 millionhm max
尺寸/Dimension

15.10 mm*4.83mm

温度/temperature range-30℃~85℃
绝缘电阻/Insulation Resistance100 megohms min



DIMENSIONS

Unit:mm

ModelDimensions
防水Micro 5p-05-004Waterproof Micro 5p-05-004Waterproof Micro 5p-05-004
