TYPE-C USB 2.0 /3.0插座

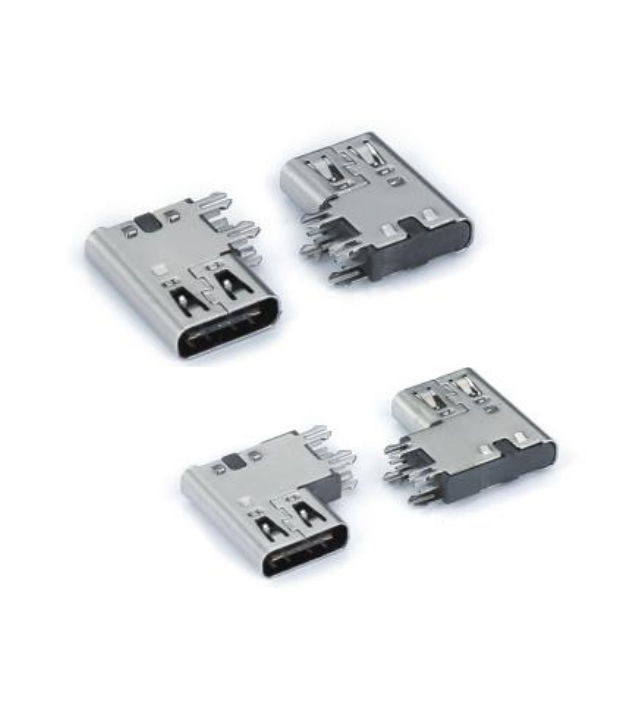

TYPE-C-06-008/009
USB 3.1Waterproof TYPE-C Connector

TYPE-C-06-008/009

TYPE-CF6P side plug 90-degree DIP with shrapnel / heightened 13.5L FEATURE ‧9.00mm*13.50mm ‧ Pin No.: 6 pin ‧ Upright APPLICATIONS ‧ Mobile Power Supply;Charger;Storage (Personal Cloud, Network-Attached Storage);Smartphone;Notebook (Laptops);Hybrid-Detachable (NB-Tablets);Docking;Peripherals (Monitor/Display, Projector…);Automotive Infotainment;Home Entertainment


Manual

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating5.0A MAX
额定电压/Voltage Rating100VAC
接触电阻/Contact Resistance40 millionhm max
尺寸/Dimension

9.00mm*13.50mm

温度/temperature range-30℃~85℃
绝缘电阻/Insulation Resistance100 megohms min



DIMENSIONS

Unit:mm

ModelDimensions
TYPE-C-06-008

TYPE-C-06-008/009

TYPE-C-06-008/009


ModelDimensions
TYPE-C-06-009TYPE-C-06-008/009TYPE-C-06-008/009
