TYPE-C USB 2.0 /3.0插座

TYPE-C-16-019

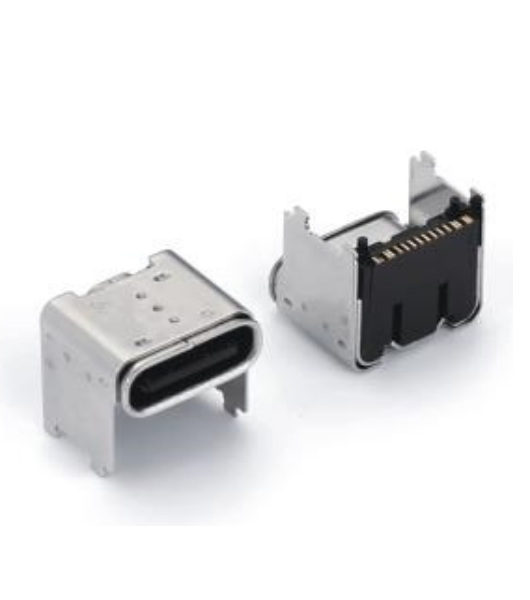

USB 3.1Waterproof TYPE-C Connector

TYPE-C-16-019

TYPE-CF16P raised 4.3 four-pin DIP + SMT 8.0L4.58/5.9/6.75/7.5H FEATURE ‧9.22mm*7.76mm ‧ Pin No.: 16 pin ‧Power strip APPLICATIONS ‧ Mobile Power Supply;Charger;Storage (Personal Cloud, Network-Attached Storage);Smartphone;Notebook (Laptops);Hybrid-Detachable (NB-Tablets);Docking;Peripherals (Monitor/Display, Projector…);Automotive Infotainment;Home Entertainment


Manual

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating5.0A MAX
额定电压/Voltage Rating100VAC
接触电阻/Contact Resistance40 millionhm max
尺寸/Dimension

9.22mm*7.76mm

温度/temperature range-30℃~85℃
绝缘电阻/Insulation Resistance100 megohms min



DIMENSIONS

Unit:mm

ModelDimensions
TYPE-C-16-019TYPE-C-16-019TYPE-C-16-019
