TYPE-C USB 2.0 /3.0插座

TYPE-C-16-026

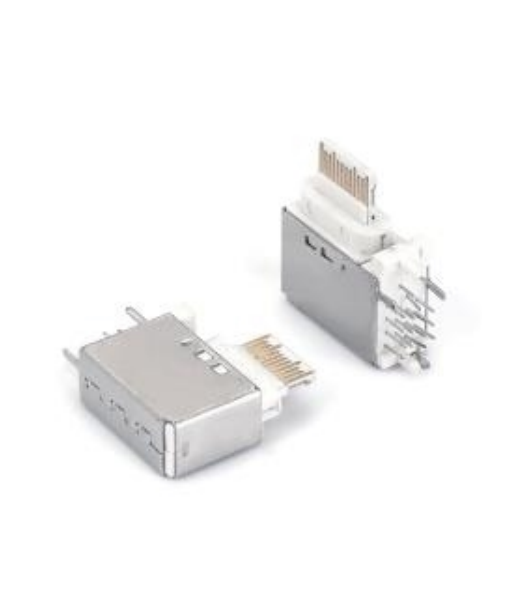

USB 3.1Waterproof TYPE-C Connector

TYPE-C-16-026

Waterproof TYPE-CF16P 4-pin plug-in board on board SMT 7.4L FEATURE ‧11.34mm*7.31mm ‧ Pin No.: 16 pin ‧ Power strip ‧ Waterproof IPX7 APPLICATIONS ‧ Mobile Power Supply;Charger;Storage (Personal Cloud, Network-Attached Storage);Smartphone;Notebook (Laptops);Hybrid-Detachable (NB-Tablets);Docking;Peripherals (Monitor/Display, Projector…);Automotive Infotainment;Home Entertainment


Manual

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating5.0A MAX
额定电压/Voltage Rating100VAC
接触电阻/Contact Resistance40 millionhm max
尺寸/Dimension

11.34mm*7.31mm

温度/temperature range-30℃~85℃
绝缘电阻/Insulation Resistance100 megohms min



DIMENSIONS

Unit:mm

ModelDimensions
TYPE-C-016-026TYPE-C-16-026TYPE-C-16-026
