Micro/Mini USB MICRO USB插座

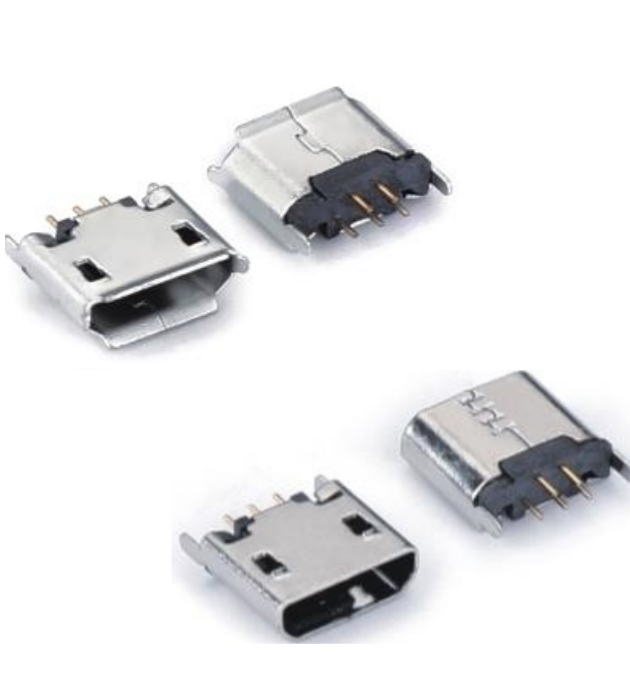

 Micro USB BMOF-05-014/015
MICRO USB

Micro USB BMOF-05-014/015

Micro5P BF 180-degree straight plug 5.6H/6.0H straight edge curled edge FEATURE ‧ 8.0mm*7.6mm ‧ Pin No.: 5 pin ‧ Power strip APPLICATIONS ‧ Mobile Power Supply;Charger;Storage (Personal Cloud, Network-Attached Storage);Smartphone;Notebook (Laptops);Hybrid-Detachable (NB-Tablets);Docking;Peripherals (Monitor/Display, Projector…);Automotive Infotainment;Home Entertainment


Manual

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating5.0A MAX
额定电压/Voltage Rating100VAC
接触电阻/Contact Resistance40 millionhm max
尺寸/Dimension

8.0mm*7.6mm

温度/temperature range-30℃~85℃
绝缘电阻/Insulation Resistance100 megohms min



DIMENSIONS

Unit:mm

ModelDimensions
 Micro USB BMOF-05-014

 Micro USB BMOF-05-014/015

 Micro USB BMOF-05-014/015


ModelDimensions
Micro USB BMOF-05-015 Micro USB BMOF-05-014/015 Micro USB BMOF-05-014/015
