Micro/Mini USB MICRO USB插座

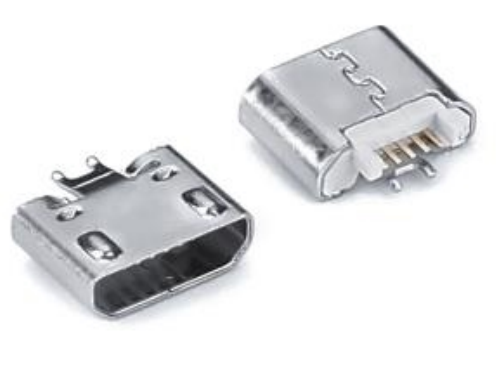

 Micro USB BMOF-05-032
MICRO USB

Micro USB BMOF-05-032

Micro 5P BF splint 0.8mm short body 5.25L straight edge FEATURE ‧7.52mm*5.25mm ‧ Pin No.: 5 pin ‧ Power strip APPLICATIONS ‧ Mobile Power Supply;Charger;Storage (Personal Cloud, Network-Attached Storage);Smartphone;Notebook (Laptops);Hybrid-Detachable (NB-Tablets);Docking;Peripherals (Monitor/Display, Projector…);Automotive Infotainment;Home Entertainment


Manual

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating5.0A MAX
额定电压/Voltage Rating100VAC
接触电阻/Contact Resistance40 millionhm max
尺寸/Dimension

7.52mm*5.25mm

温度/temperature range-30℃~85℃
绝缘电阻/Insulation Resistance100 megohms min

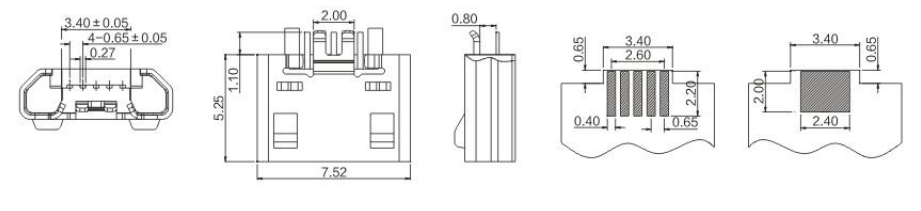

DIMENSIONS

Unit:mm

ModelDimensions

Micro USB BMOF-05-032


 Micro USB BMOF-05-032
 Micro USB BMOF-05-032
