USB 3.0 (Super Speed) USB3.1 TYPE-C插座

USB 3.0 AF BUBF-09-001
USB 3.0 AF

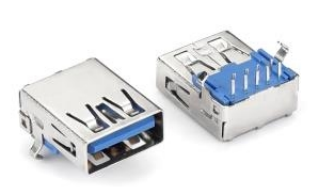

USB 3.0 AF BUBF-09-001

USB3.0 AF 90-degree bent pin board DIP 16.5L curled edge and straight edge FEATURE ‧16.5mm*6.95mm ‧ Pin No.:5 pin ‧ Power strip APPLICATIONS ‧ Mobile Power Supply;Charger;Storage (Personal Cloud, Network-Attached Storage);Smartphone;Notebook (Laptops);Hybrid-Detachable (NB-Tablets);Docking;Peripherals (Monitor/Display, Projector…);Automotive Infotainment;Home Entertainment


Manual

COMMON SPECIFICATIONS


CharacteristicsSpecification
额定电流/Current Rating5.0A MAX
额定电压/Voltage Rating100VAC
接触电阻/Contact Resistance40 millionhm max
尺寸/Dimension

16.5mm*6.95mm

温度/temperature range-30℃~85℃
绝缘电阻/Insulation Resistance100 megohms min

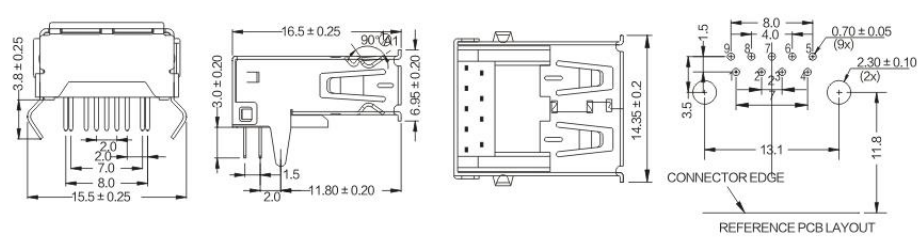

DIMENSIONS

Unit:mm

ModelDimensions

USB 3.0 AF BUBF-09-001


USB 3.0 AF BUBF-09-001
USB 3.0 AF BUBF-09-001
