TK-034MU
Micro-Miniature Tact Switch
TK-034MU
SMT VERTICAL Type TACT SWITCH FEATURE 4.75mmx3.55mmx2.5mm, surface mounting type.. ‧Reflow solderable. APPLICATIONS ‧ For Audio、OA equipment、Instrumentation、Communication、Consumer electronics etc.
Download
Inquiry
Manual
COMMON SPECIFICATIONS
Characteristics
Specification
工作溫度範圍/Operating temperature range
-30℃ to +85℃
操作力/Operating force
180、250gf
行程/Travel
0.25mm
尺寸/Dimension
4.75*3.55mm
使用壽命/Operating life
100,000 cycles
最大額定值/Maximum ratings
DC12V 50mA
絕緣電阻/Insulation resistance
100MΩ min
耐電壓/Voltage proof
1 minute 250V AC

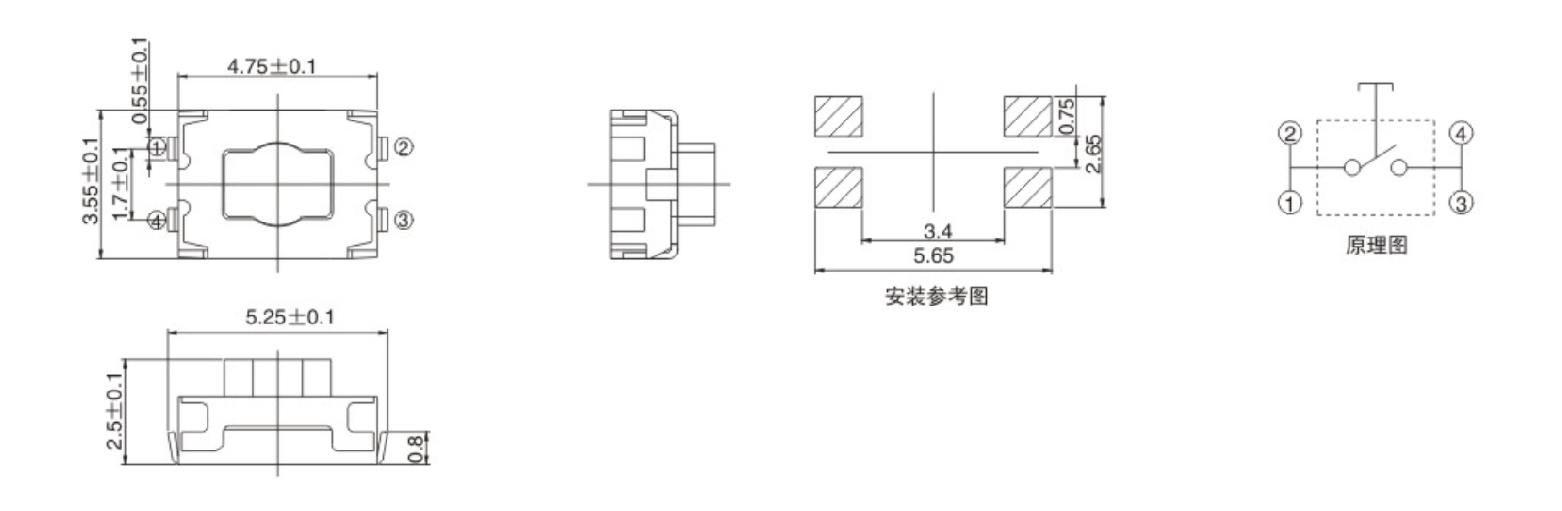

DIMENSIONS
Unit:mm
Model
Dimensions
TK-034MU
