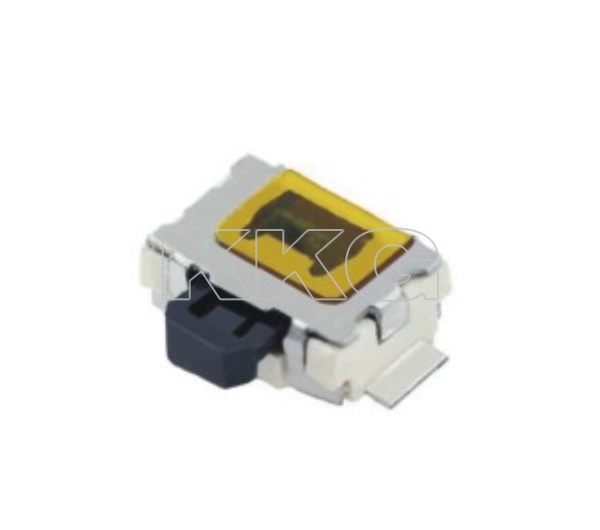

TK-034C series

SMT VERTICAL Type 3.9mm*2.9mm 2PIN TACT SWITCH FEATURE surface mounting type.. ‧Reflow solderable. APPLICATIONS ‧ For Audio、OA equipment、Instrumentation、Communication、Consumer electronics etc.

Download Inquiry

Manual

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-30℃ to +85℃
操作力/Operating force	100gf、160gf、260gf
行程/Travel	0.25mm
尺寸/Dimension	3.9*2.9mm
使用壽命/Operating life	100,000 cycles
最大額定值/Maximum ratings	DC12V 50mA
絕緣電阻/Insulation resistance	100MΩ min
耐電壓/Voltage proof	1 minute 250V AC
