TACT SWITCH 輕觸開關

TK-024E
Right Angle Ultra Miniature Tact Switch

TK-024E

SMT VERTICAL Type 4mm*4.55mm TACT SWITCH FEATURE ‧Silver plated contacts ‧Reflow solderable. APPLICATIONS ‧ For Audio、OA equipment、Instrumentation、Communication、Consumer electronics etc.


Manual

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-30℃ to +85℃
操作力/Operating force100gf、160gf、260gf
行程/Travel0.25mm
尺寸/Dimension4* 4.55mm
使用壽命/Operating life100,000 cycles
最大額定值/Maximum ratingsDC12V 50mA
絕緣電阻/Insulation resistance100MΩ min
耐電壓/Voltage proof1 minute 250V AC

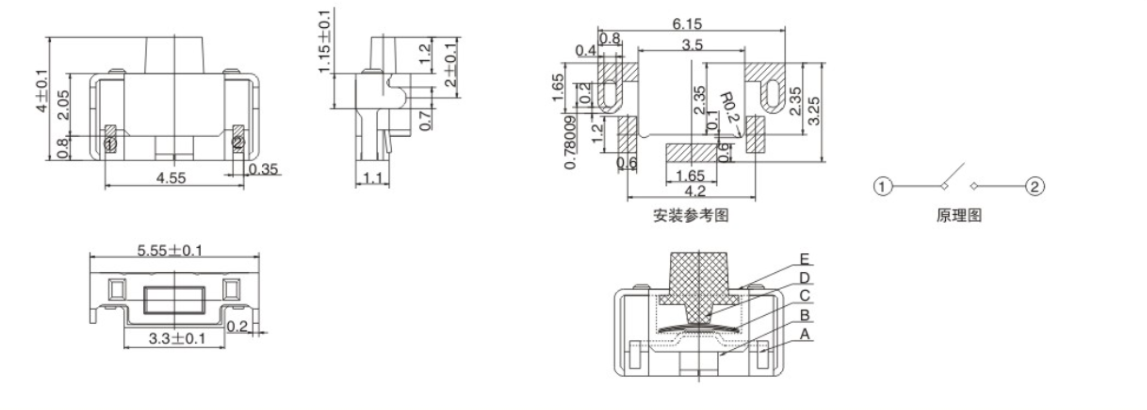

DIMENSIONS

Unit:mm

ModelDimensions

TK-024E

TK-024E



TK-024E
