TACT SWITCH 輕觸開關

TK-035series
TK-035series
TK-035series

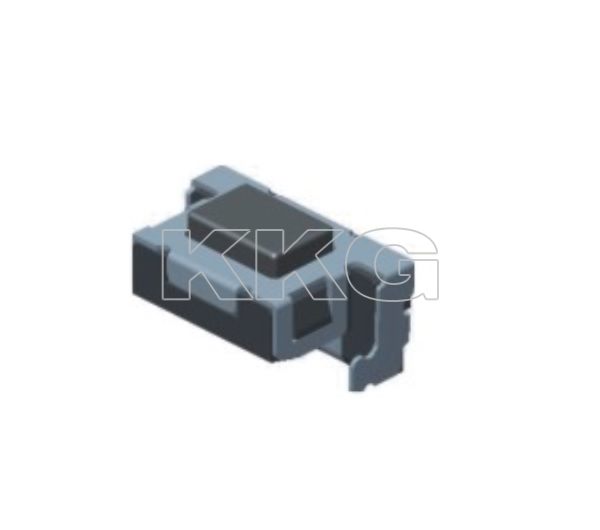

Micro-Miniature Right Angle SMT Tact Switch

TK-035series

Right Angle SMT Type, 4.6mm*2.9mm SMT Tact switch FEATURE 4.6mm*2.9mm, surface mounting type.. ‧Reflow solderable. APPLICATIONS ‧ For Audio、OA equipment、Instrumentation、Communication、Consumer electronics etc.


Manual

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-30℃ to +85℃
操作力/Operating force160gf、260gf
行程/Travel0.25±0.1mm
尺寸/Dimension4.6mm* 2.9mm
使用壽命/Operating life100,000 cycles
最大額定值/Maximum ratingsDC12V 50mA
絕緣電阻/Insulation resistance100MΩ min
耐電壓/Voltage proof1 minute 250V AC

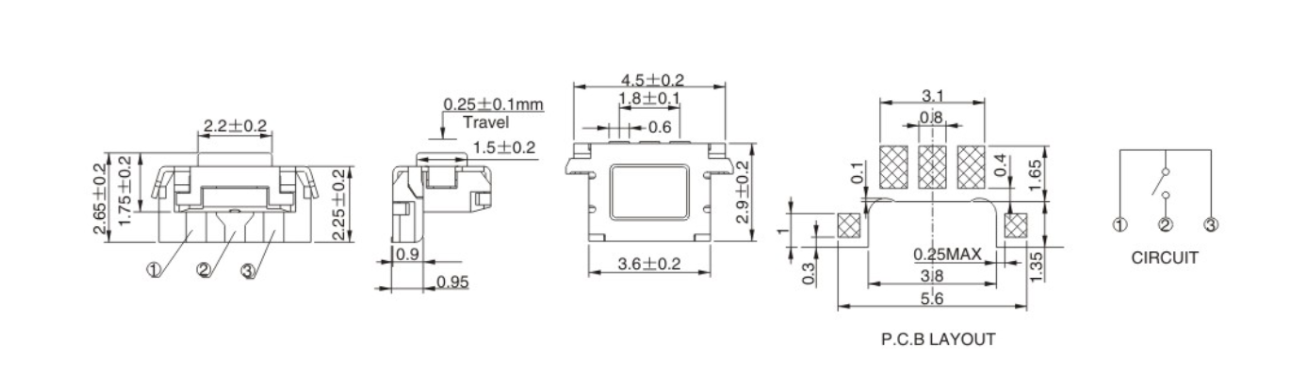

DIMENSIONS

Unit:mm

ModelDimensions

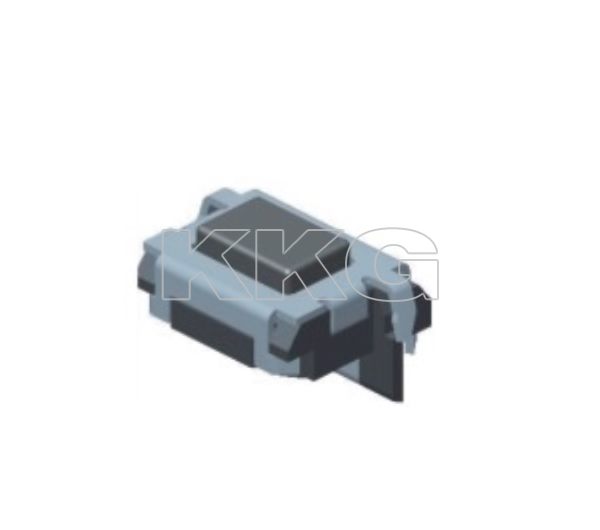

TK-035A

TK-035A





TK-035A


Unit:m

Unit:mm

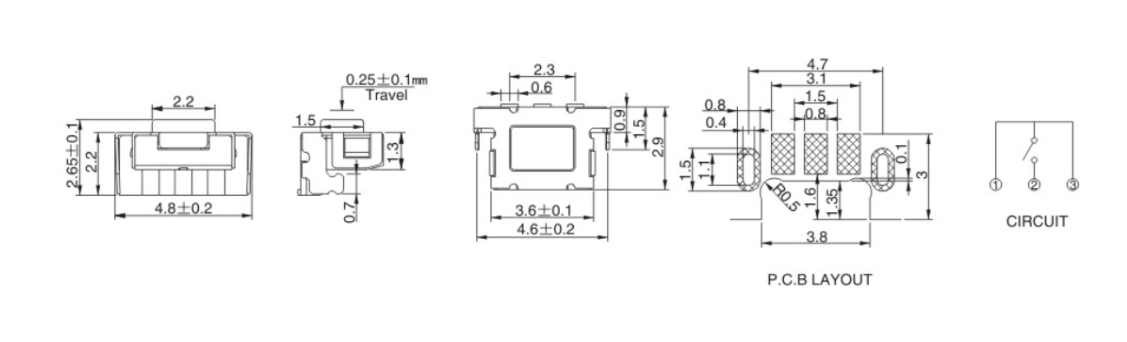

ModelDimensions

TK-035

TK-035A



TK-035A

Unit:mm
