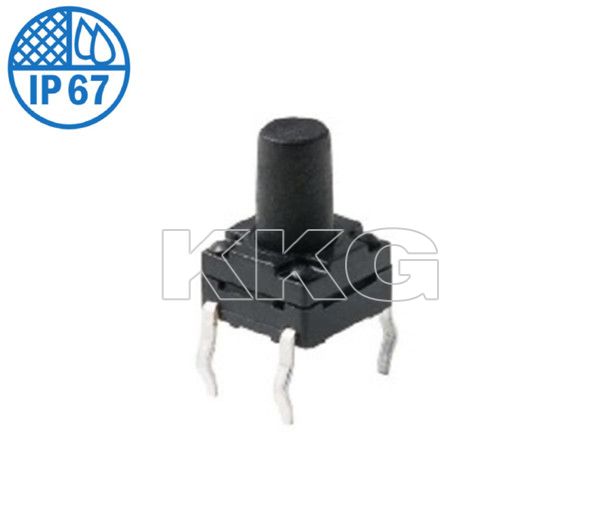

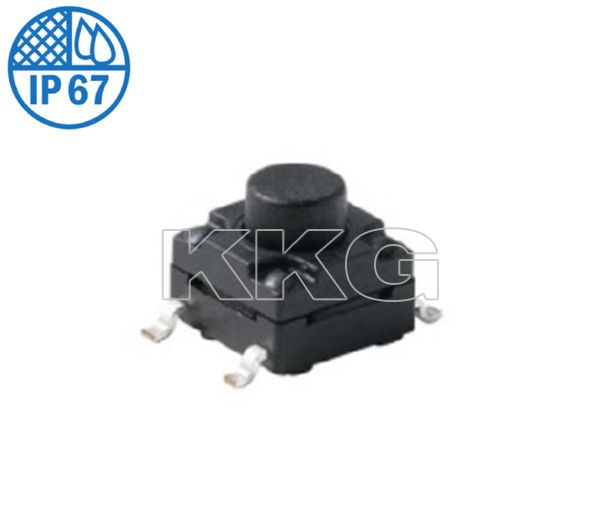

TK-067 Series
Ultraminiature SMT Tact Switch
TK-067 Series
SMT VERTICAL Type FEATURE 6.2mm*6.2mm, surface mounting type.. ‧Reflow solderable. APPLICATIONS ‧ For Audio、OA equipment、Instrumentation、Communication、Consumer electronics etc.
Download
Inquiry
Manual
COMMON SPECIFICATIONS
Characteristics
Specification
工作溫度範圍/Operating temperature range
-20℃ to +70℃
操作力/Operating force
100、160、260gf
行程/Travel
0.25mm
尺寸/Dimension
6.2*6.2mm
使用壽命/Operating life
100,000 cycles
最大額定值/Maximum ratings
DC12V 50mA
絕緣電阻/Insulation resistance
100MΩ min
耐電壓/Voltage proof
1 minute 250V AC

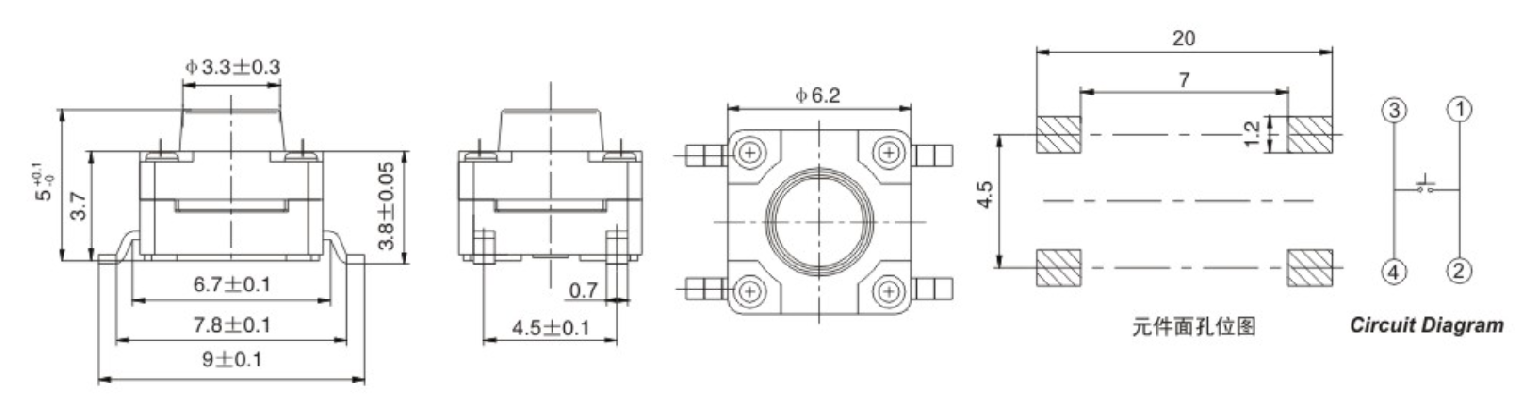

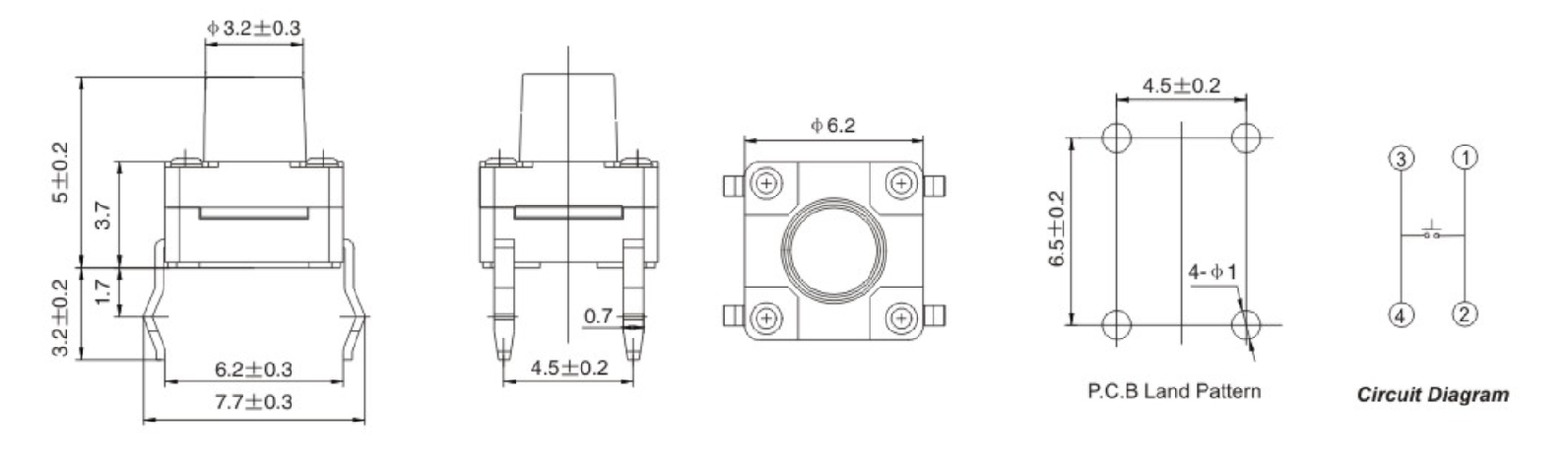

DIMENSIONS
Unit:mm
Model
Dimensions
TK-067
Model
Dimensions
TK-067S
