PK-150F
KEYBOARD SWITCH
PK-150F
Dustproof type,KEYBOARD SWITCH 15.60mm * 15.60mm H = 15.2mm It has the advantages of good touch, long-term durability, high stability, strong sensitivity, Dustproof type application ·Suitable for mechanical keyboar
Download
Inquiry
Manual
COMMON SPECIFICATIONS
Characteristics
Specification
工作溫度範圍/Operating temperature range
-30℃ to +85℃
触觉力/Tactile Force
50
±10
gf
行程/Travel
2.0mm
尺寸/Dimension
15.60 * 6.9mm
使用壽命/Operating life
1,000,000 cycles
最大額定值/Maximum ratings
DC12V 10mA
絕緣電阻/Insulation resistance
100MΩ min
耐電壓/Voltage proof
1 minute 250V AC

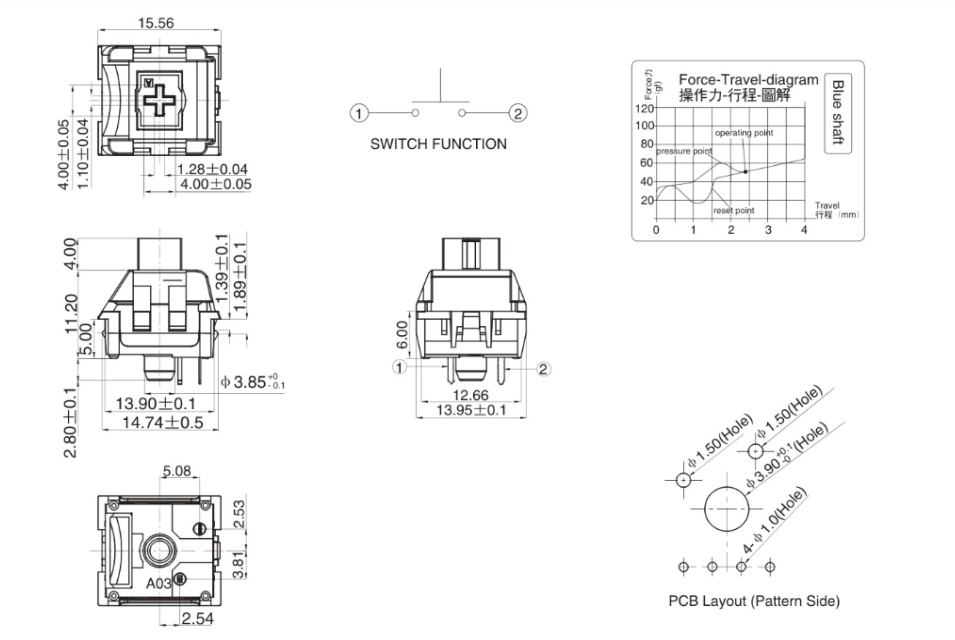

DIMENSIONS
Unit:mm
Model
Dimensions
PK150F
Un
i
