PK-150H
KEYBOARD SWITCH
PK-150H
Ultra thin, keyboard switch 15.60mm*15.60mm H=15.2mm With good contact, long-term durability, high stability, strong sensitivity, dust and other advantages application ·Suitable for mechanical keyboard
Download
Inquiry
Manual
COMMON SPECIFICATIONS
Characteristics
Specification
工作溫度範圍/Operating temperature range
-30℃ to +85℃
触觉力/Tactile force
60±10gf
行程/Travel
2.0mm
尺寸/Dimension
15.00 * 15.05mm
使用壽命/Operating life
50,000,000 cycles
最大額定值/Maximum ratings
DC12V 10mA
絕緣電阻/Insulation resistance
100MΩ min
耐電壓/Voltage proof
1 minute 250V AC

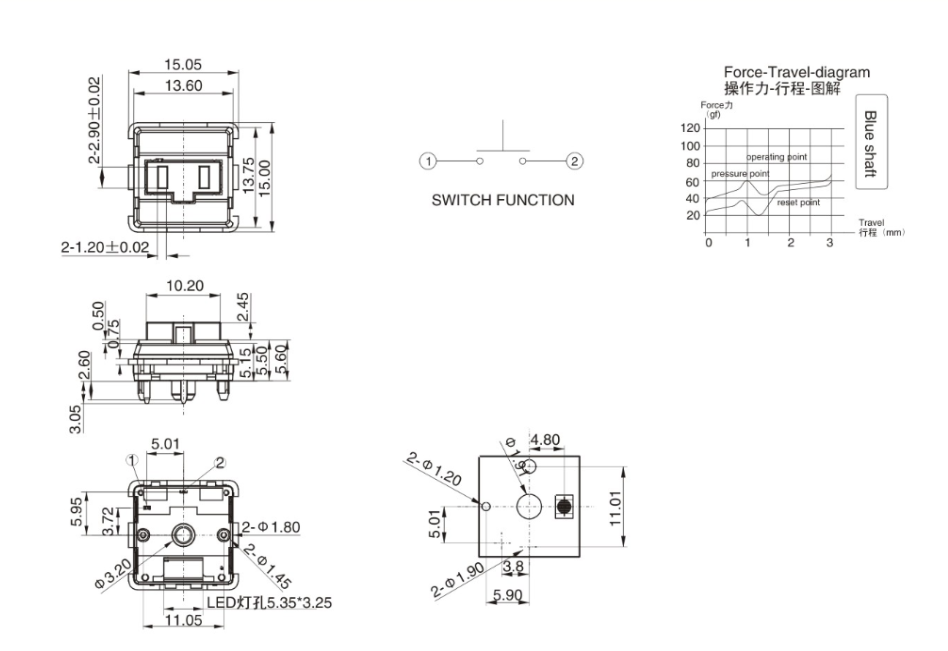

DIMENSIONS
Unit:mm
Model
Dimensions
PK-150H
Un
i
