DETECTOR SWITCH 檢測開關

DS-023D
DETECTOR SWITCH

DS-023D

檢測開關 8.70mm*9.20mm The advantages of detection switch are smaller volume, more flexible design, longer service life and more functions for the design of brake mechanism. Application: Digital products, security, computer, communication products, household appliances, intelligent transportation, etc


Manual

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-25℃ ~80℃
触觉力/Tactile force60±10gf
行程/Travel2.0mm
尺寸/Dimension8.70*9.20mm
使用壽命/Operating life50,000cycles
最大額定值/Maximum ratingsDC30V 0.1A
絕緣電阻/Insulation resistance100MΩ min
耐電壓/Voltage proof1 minute 250V AC

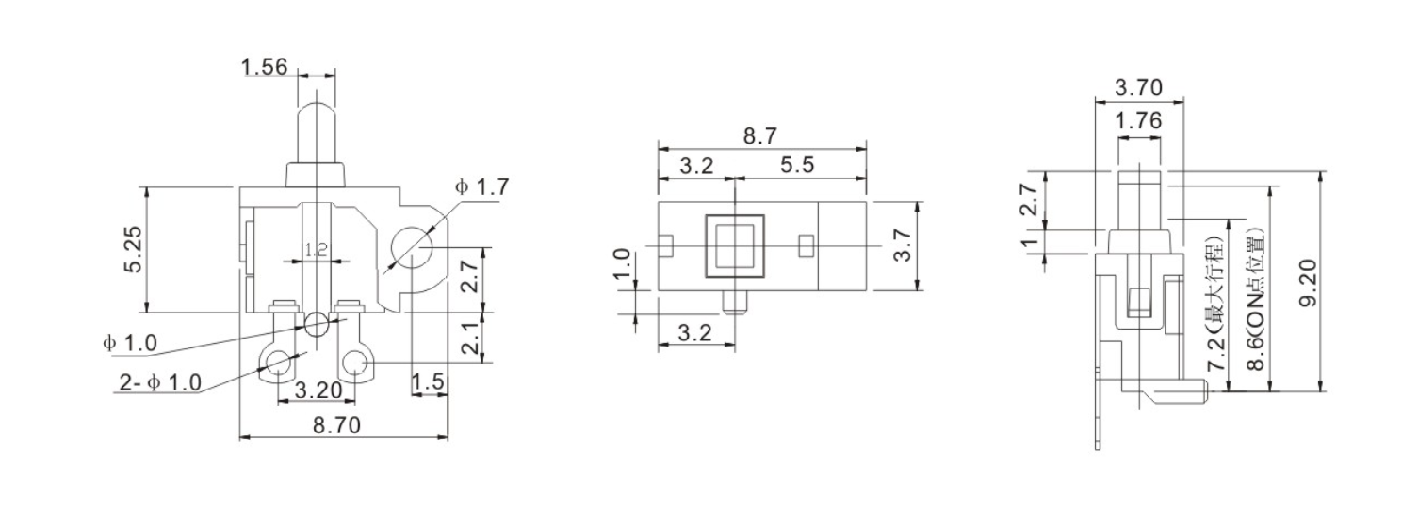

DIMENSIONS

Unit:mm

ModelDimensions

DS-023DDS-023D




DS-023D
