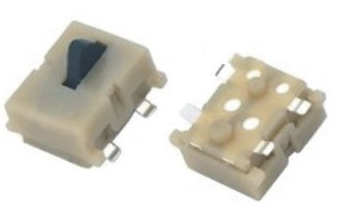

DETECTOR SWITCH 檢測開關

DS-019S
DETECTOR SWITCH

DS-019S

檢測開關 4.8mm*3.7mm*2.6mm The advantages of detection switch are smaller volume, more flexible design, longer service life and more functions for the design of brake mechanism. Application: Digital products, security, computer, communication products, household appliances, intelligent transportation, etc


Manual

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-25℃ ~80℃
操作力/Operating force35±15gf
尺寸/Dimension4.8mm* 3.7mm
使用壽命/Operating life50,000 cycles
最大額定值/Maximum ratings1mA 5VDC~50uA 3VDC
絕緣電阻/Insulation resistance100MΩ min
接触电阻/Contact Resistance
2Ωmax~5Ωmax

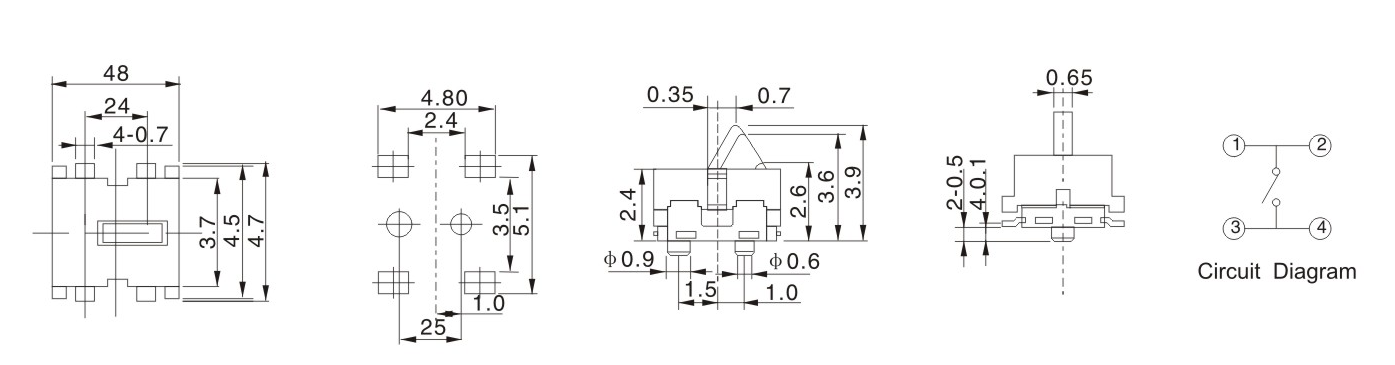

 DIMENSIONS

Unit:mm

ModelDimensions

DS-019S

DS-019S

DS-019S
