DETECTOR SWITCH 檢測開關

DS-019SA
DETECTOR SWITCH

DS-019SA

檢測開關 4.7mm*3.5mm*2.35mm The advantages of detection switch are smaller volume, more flexible design, longer service life and more functions for the design of brake mechanism. Application: Digital products, security, computer, communication products, household appliances, intelligent transportation, etc


Manual

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-25℃ ~80℃
操作力/Operating force35±15gf
尺寸/Dimension4.7mm* 3.5mm
使用壽命/Operating life50,000 cycles
最大額定值/Maximum ratings1mA 5VDC~50uA 3VDC
絕緣電阻/Insulation resistance100MΩ min
接触电阻/Contact Resistance
2Ωmax~5Ωmax

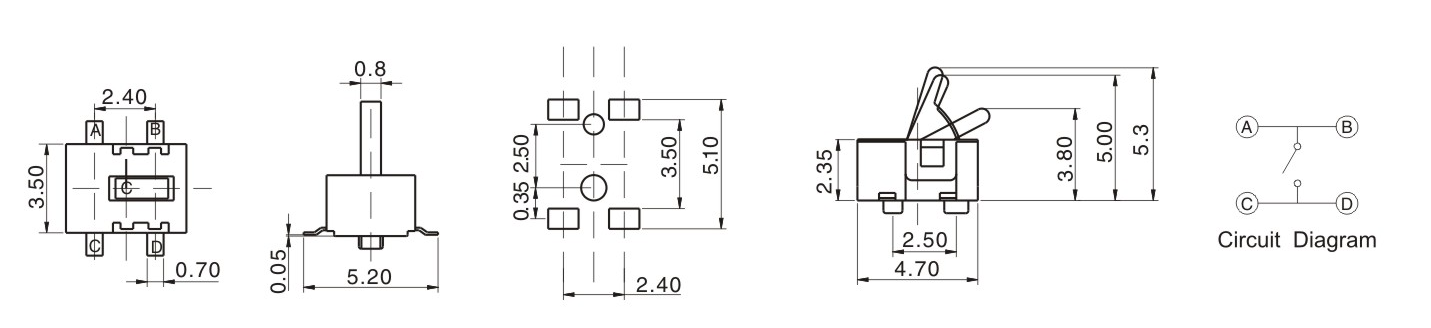

 DIMENSIONS

Unit:mm

ModelDimensions

DS-019SA

DS-019SA

DS-019SA
