SIM series

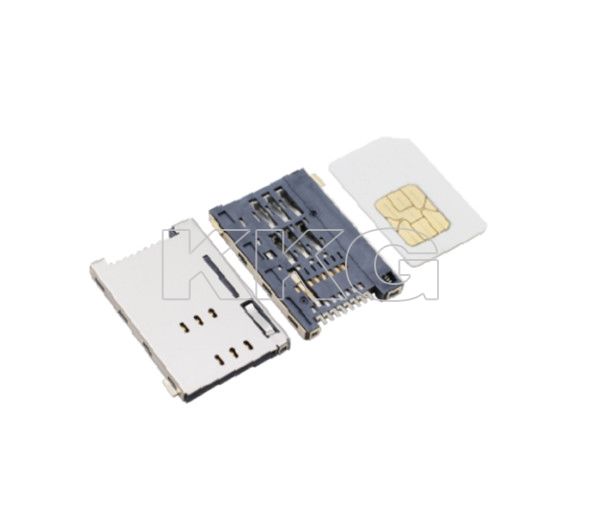

SIM-3062
SIM Card Connectors

SIM-3062

SIM卡座 SIM PUSH 6+2P H2.2 FEATURE surface mounting type.. ‧Reflow solderable. Application: Digital products, computers, communication products, household appliances, etc.


Manual

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-25℃ ~90℃
接觸電阻/Contact resistance≤100m
尺寸/Dimension18.85*28.05*2.2mm
使用壽命/Operating life5000 cycles
最大額定值/Maximum ratingsDC 5V 0.5A
絕緣電阻/Insulation resistance≥100MΩ
耐電壓/Voltage proof500V AC

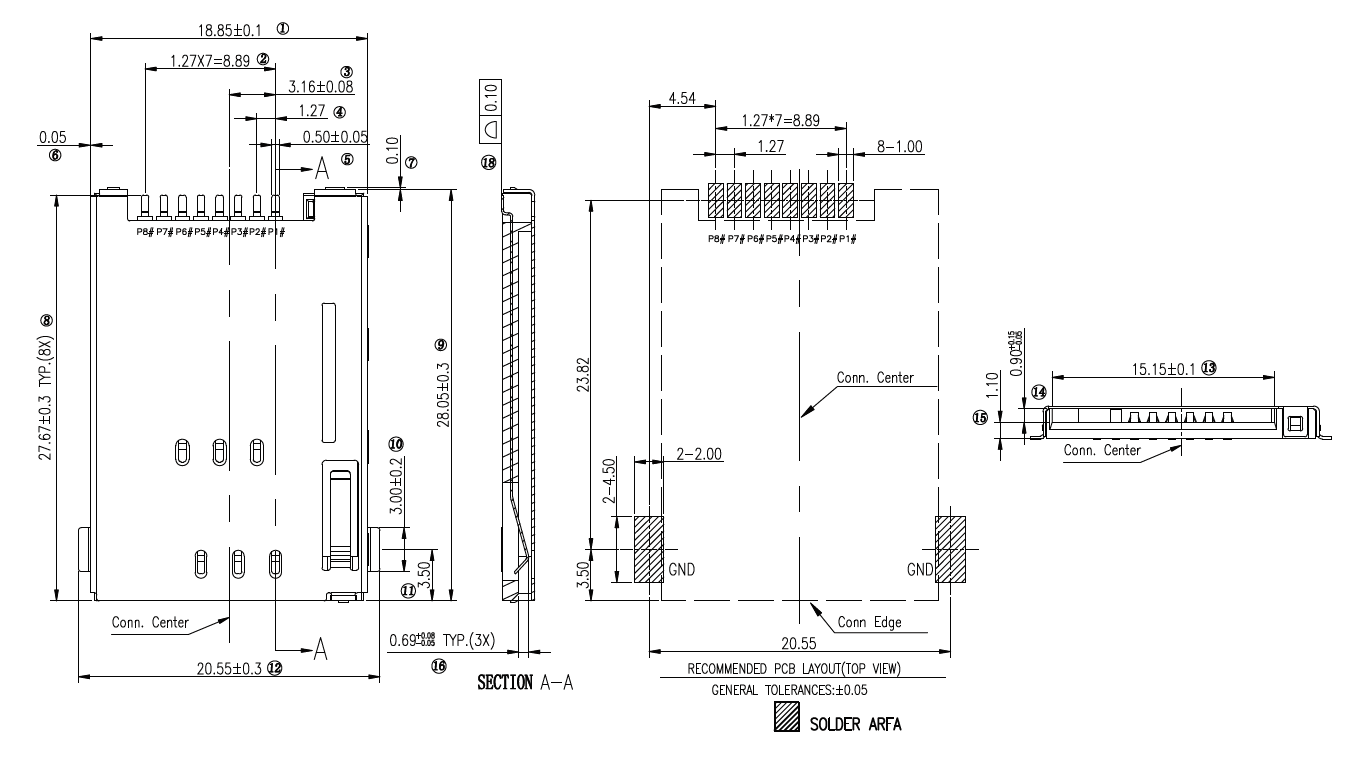

DIMENSIONS

Unit:mm

ModelDimensions

SIM-3062

SIM-3062

SIM-3062
