SIM series

SIM-1272
SIM Card Connectors

SIM-1272

SIM卡座 NANO SIM TOP MOUNT SINK TYPE PUSH FEATURE surface mounting type.. ‧Reflow solderable. Application: Digital products, computers, communication products, household appliances, etc.

Download Inquiry

Manual

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-25℃ ~90℃
接觸電阻/Contact resistance≤100mΩ
尺寸/Dimension11.5*14.35*1.5mm
使用壽命/Operating life5000 cycles
最大額定值/Maximum ratingsDC 5V 0.5A
絕緣電阻/Insulation resistance≥100MΩ
耐電壓/Voltage proof500V AC

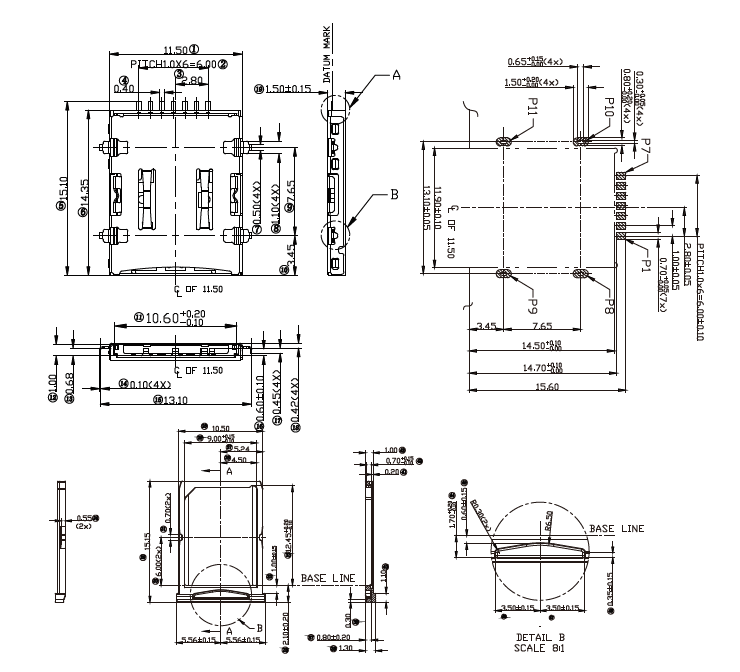

DIMENSIONS

Unit:mm

ModelDimensions

SIM-1272

SIM-1272

SIM-1272
