SLIDE SWITCH 滑動開關

SS-2202
SS-2202
SLIDE SWITCH SERIES

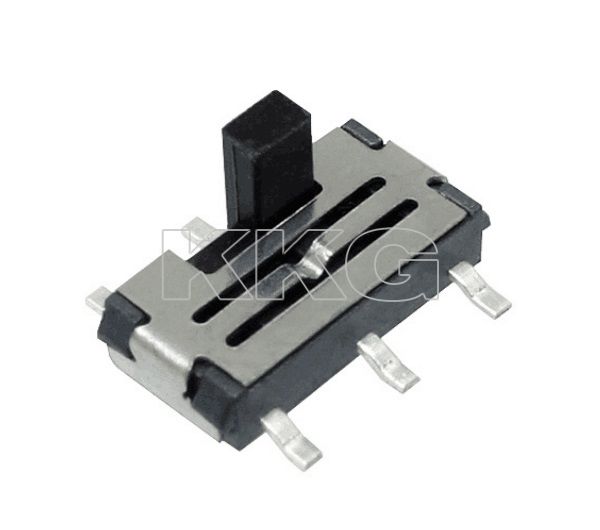

SS-2202

7.10mm*3.50mm Small patch toggle switch Function ‧2P2T function ‧SMT design ‧1.50mm travel ‧Compact design APPLICATIONS The mouse keyboard, digital camera, bluetooth headset, car, mobile phone, the sound


Manual

COMMON SPECIFICATIONS


Characteristics

Specification
工作溫度範圍/Operating temperature range-25℃ to +80℃
操作力/Operating force300gf
行程/Travel1.5mm
尺寸/Dimension7.10* 3.50mm
使用壽命/Operating life100,00 cycles
最大額定值/Maximum ratingsDC4V 300mA
絕緣電阻/Insulation resistance100MΩ min
耐電壓/Voltage proof1 minute 250V AC

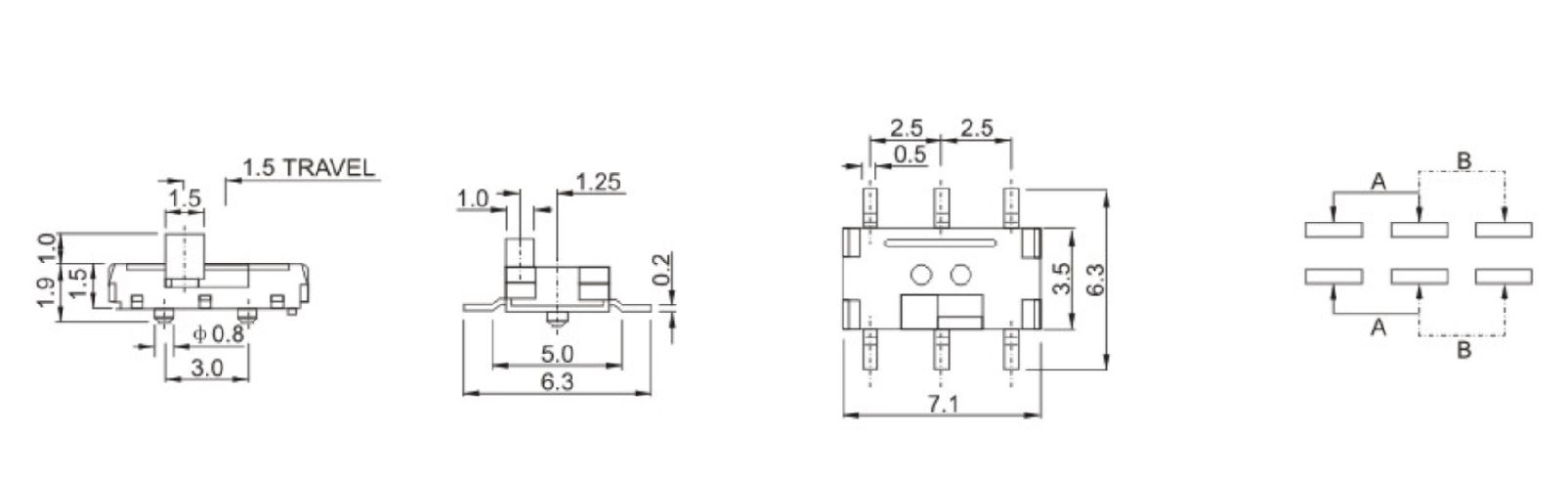

DIMENSIONS

Unit:mm

ModelDimensions




SS-2202SS-2202




SS-2202

Unit:mm
