SD series

SD-1462
SD Card Connectors

SD-1462

SD卡座 SD NO PUSH 短体卡座黑、白胶 FEATURE surface mounting type.. ‧Reflow solderable. Application: Digital products, computers, communication products, household appliances, etc.

Download Inquiry

Manual

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-25℃ ~90℃
接觸電阻/Contact resistance≤100mΩ
尺寸/Dimension26.3*16.5*2.8mm
使用壽命/Operating life5000 cycles
最大額定值/Maximum ratingsDC 5V 0.5A
絕緣電阻/Insulation resistance≥100MΩ
耐電壓/Voltage proof500V AC

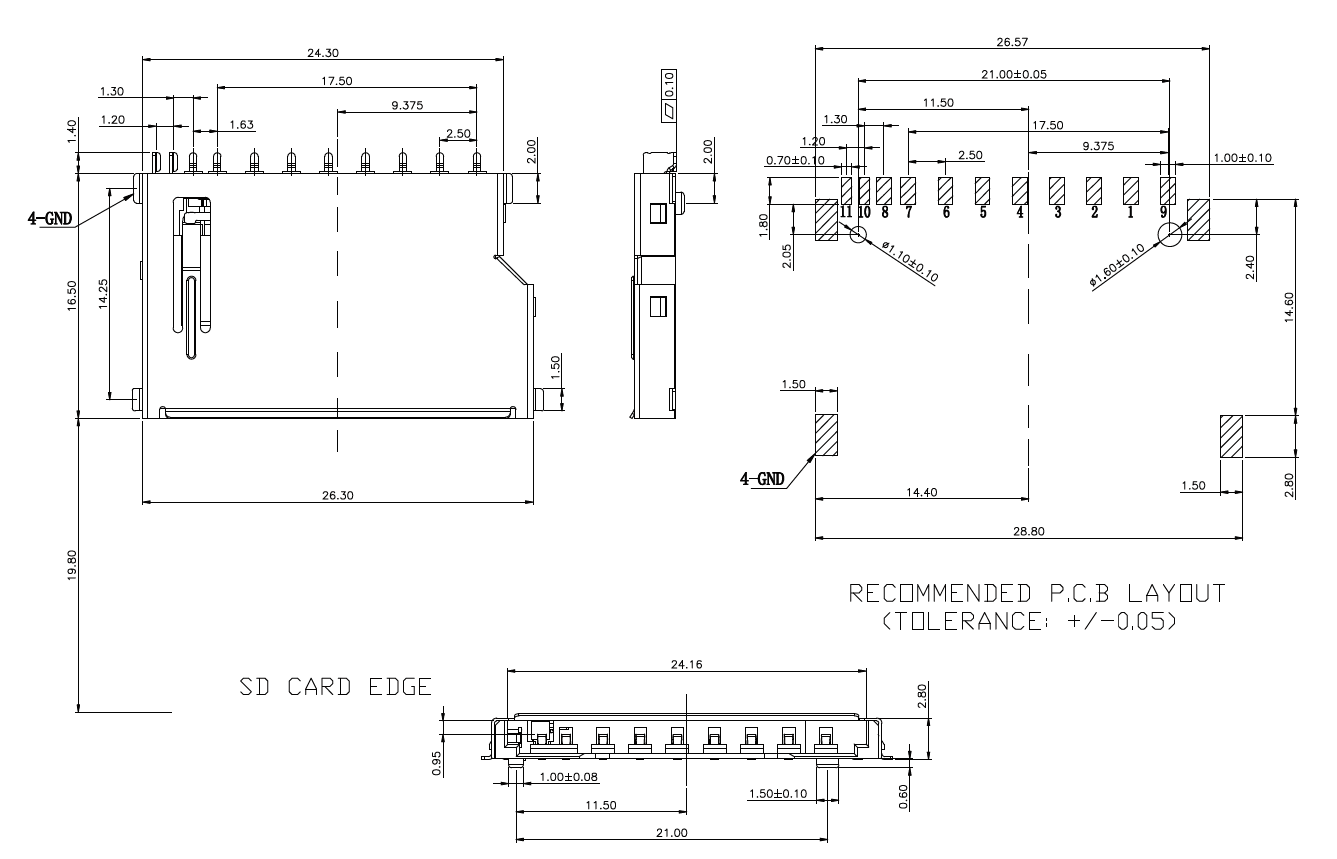

DIMENSIONS

Unit:mm

ModelDimensions

SD-1462

SD-1462

SD-1462
