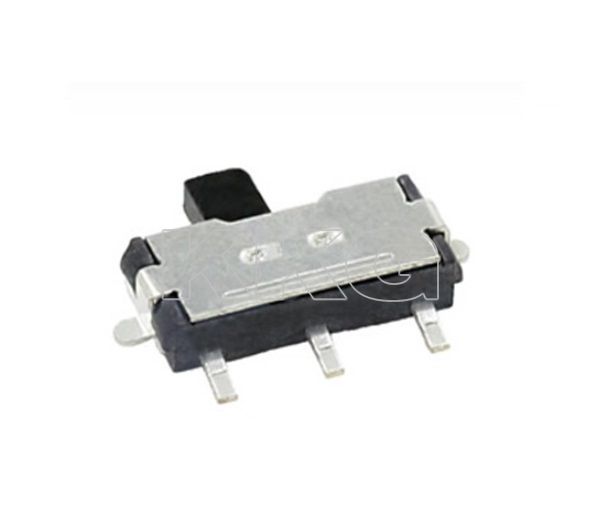

SK-1213
SLIDE SWITCH SERIES
SK-1213
7.20mm*3.00mm Small patch toggle switch Function ‧1P2T function ‧SMD design ‧1.5mm travel ‧Compact design APPLICATIONS The mouse keyboard, digital camera, bluetooth headset, car, mobile phone, the sound
Download
Inquiry
Manual
COMMON SPECIFICATIONS
Characteristics
Specification
工作溫度範圍/Operating temperature range
-25℃ to +80℃
操作力/Operating force
160gf
行程/Travel
1.5mm
尺寸/Dimension
7.20*3.00mm
使用壽命/Operating life
100,00 cycles
最大額定值/Maximum ratings
DC4V 300mA
絕緣電阻/Insulation resistance
100MΩ min
耐電壓/Voltage proof
1 minute 500V AC

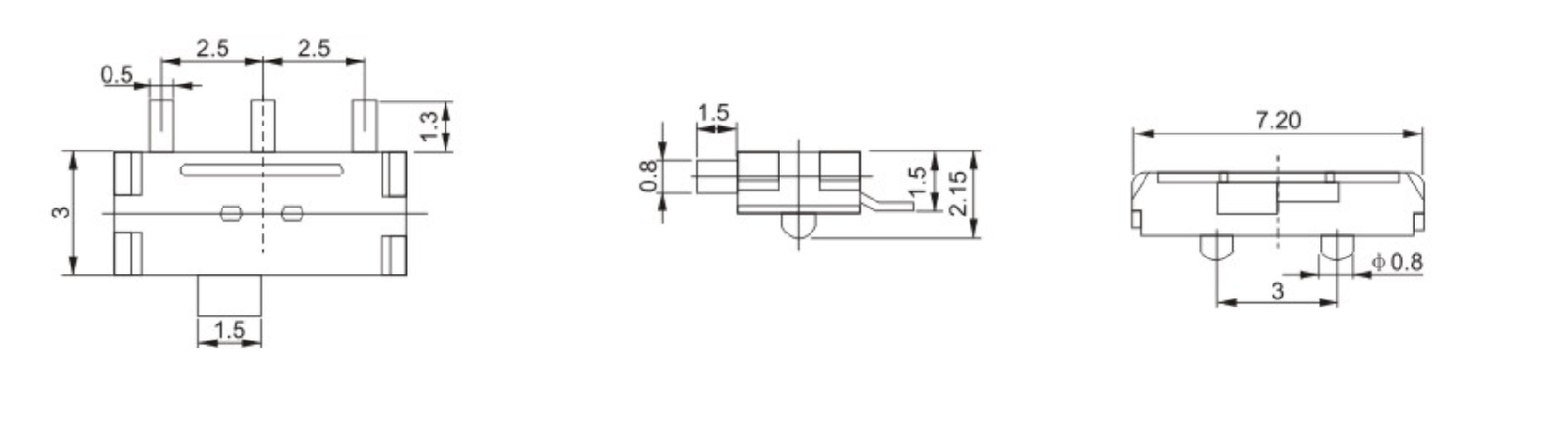

DIMENSIONS
Unit:mm
Model
Dimensions
SK-1213
Unit:mm
