SLIDE SWITCH 滑動開關

SK-1218A
SLIDE SWITCH SERIES

SK-1218A

8.60mm*2.90mm Small patch toggle switch Function ‧1P2T function ‧SMD design ‧2.0mm travel ‧Compact design APPLICATIONS The mouse keyboard, digital camera, bluetooth headset, car, mobile phone, the sound

Download Inquiry

Manual

COMMON SPECIFICATIONS


CharacteristicsSpecification
工作溫度範圍/Operating temperature range-25℃ to +80℃
操作力/Operating force200gf
行程/Travel2.0mm
尺寸/Dimension8.60*2.90mm
使用壽命/Operating life100,00 cycles
最大額定值/Maximum ratingsDC4V 300mA
絕緣電阻/Insulation resistance100MΩ min
耐電壓/Voltage proof1 minute 500V AC

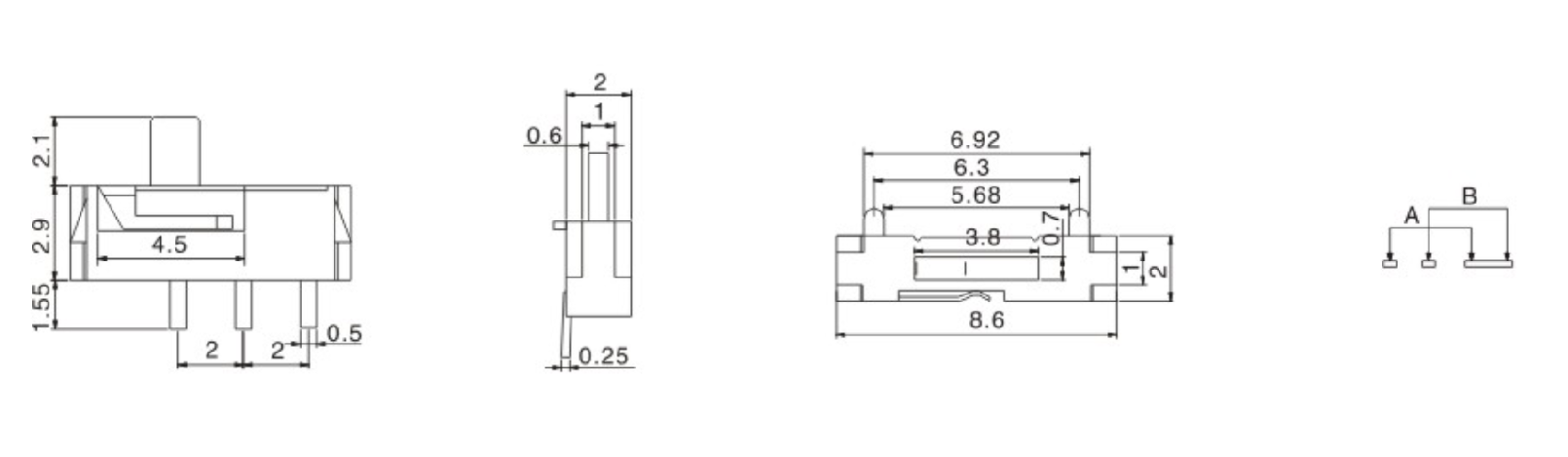

DIMENSIONS

Unit:mm

ModelDimensions




SK-1218ASK-1218A





SK-1218A

Unit:mm
