SLIDE SWITCH 滑動開關

SK-1210A
SLIDE SWITCH SERIES

SK-1210A

11.00mm*3.55mm Small patch toggle switch Function ‧1P2T function ‧SMD design ‧2.7mm travel ‧Compact design APPLICATIONS The mouse keyboard, digital camera, bluetooth headset, car, mobile phone, the sound


Manual

COMMON SPECIFICATIONS


Characteristics

Specification
工作溫度範圍/Operating temperature range-25℃ to +80℃
操作力/Operating force250gf
行程/Travel2.7mm
尺寸/Dimension11.00*3.55mm
使用壽命/Operating life100,00 cycles
最大額定值/Maximum ratingsDC4V 300mA
絕緣電阻/Insulation resistance100MΩ min
耐電壓/Voltage proof1 minute 500V AC

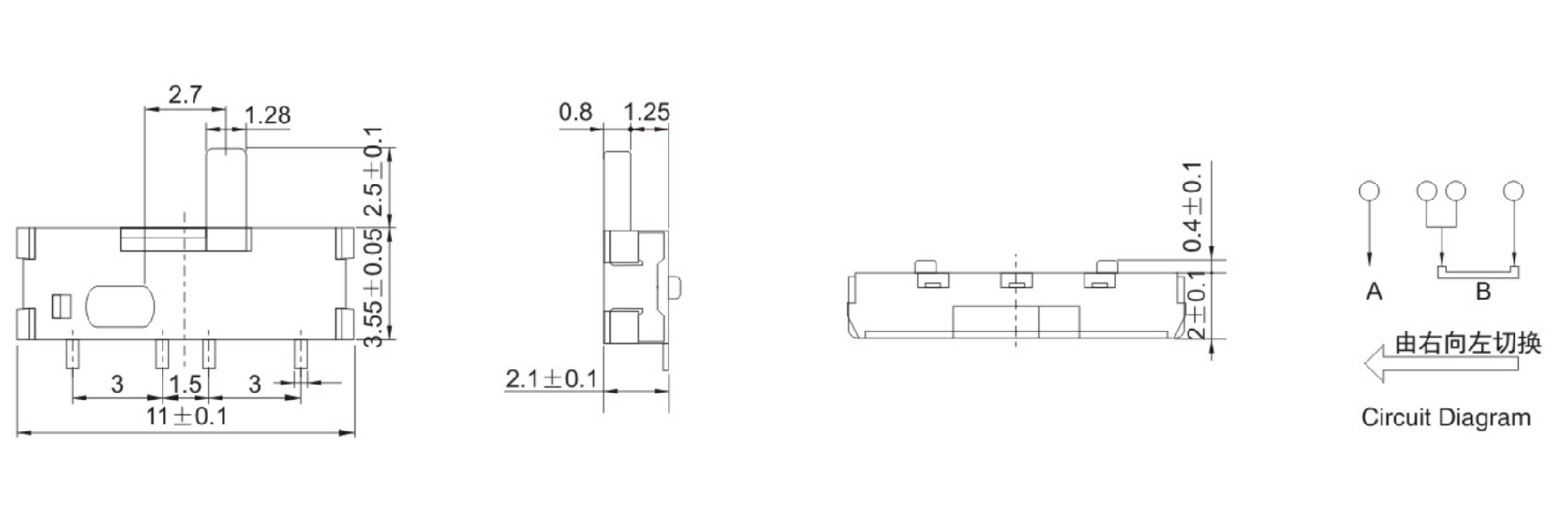

DIMENSIONS

Unit:mm

ModelDimensions




SK-1210ASK-1210A





SK-1210A

Unit:mm
