Smart series

Smart-4152/4182
Smart Card Connectors

Smart-4152/4182

Smart卡座 IC CARD ACCPTOR H1.40左耳/右耳 FEATURE surface mounting type.. ‧Reflow solderable. Application: Digital products, computers, communication products, household appliances, etc.

Download Inquiry

Manual

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-25℃ ~90℃
接觸電阻/Contact resistance≤100mΩ
尺寸/Dimension17.5*28.7*1.4mm
使用壽命/Operating life5000 cycles
最大額定值/Maximum ratingsDC 5V 0.5A
絕緣電阻/Insulation resistance≥100MΩ
耐電壓/Voltage proof500V AC

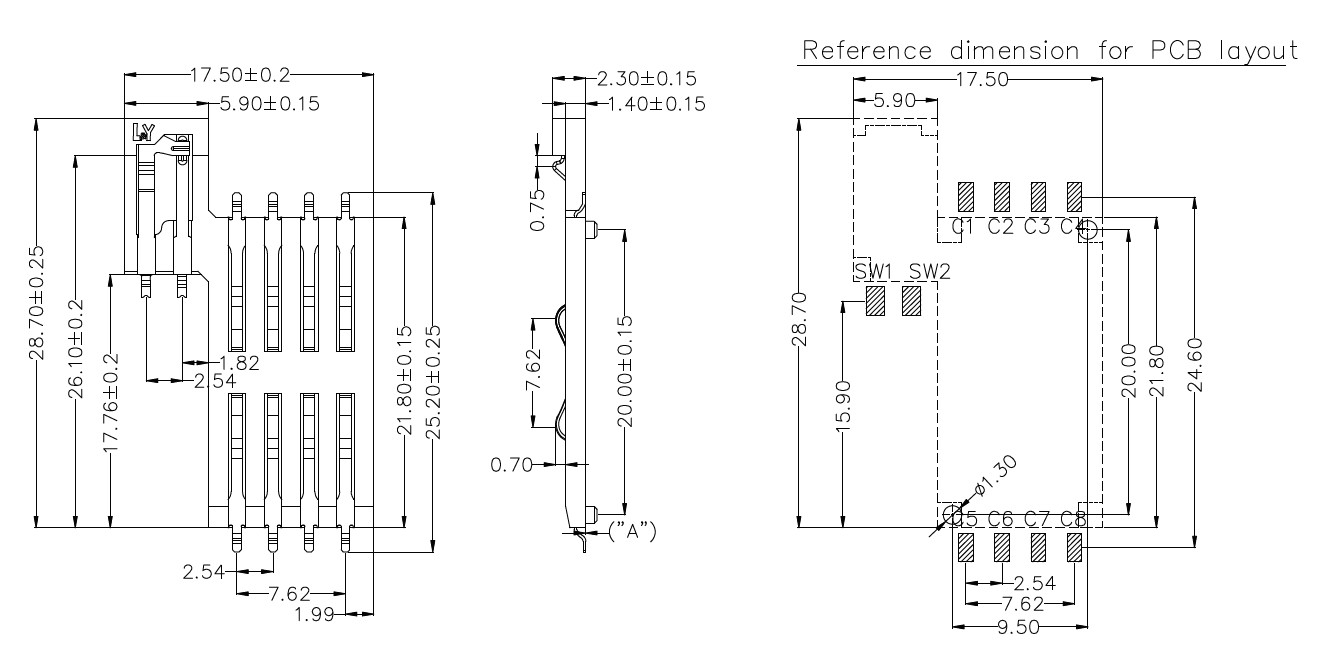

DIMENSIONS

Unit:mm

ModelDimensions

Smart-4152/4182

Smart-4152/4182

Smart-4152/4182
