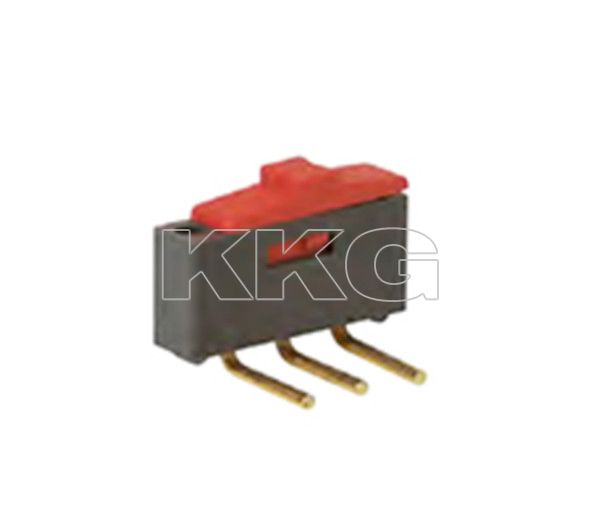

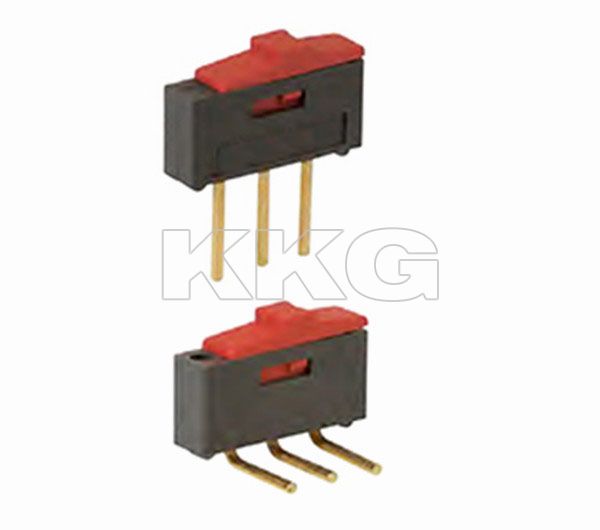

SK-10D series

10.00mm*6.40mm Small plugin toggle switch Function ‧1P2T function ‧DIP design ‧1.6mm travel ‧Compact design APPLICATIONS The mouse keyboard, digital camera, bluetooth headset, car, mobile phone, the sound

Download Inquiry

Manual

COMMON SPECIFICATIONS

Characteristics	Specification
工作溫度範圍/Operating temperature range	-30℃ to +85℃
操作力/Operating force	250gf±150gf
行程/Travel	1.6mm

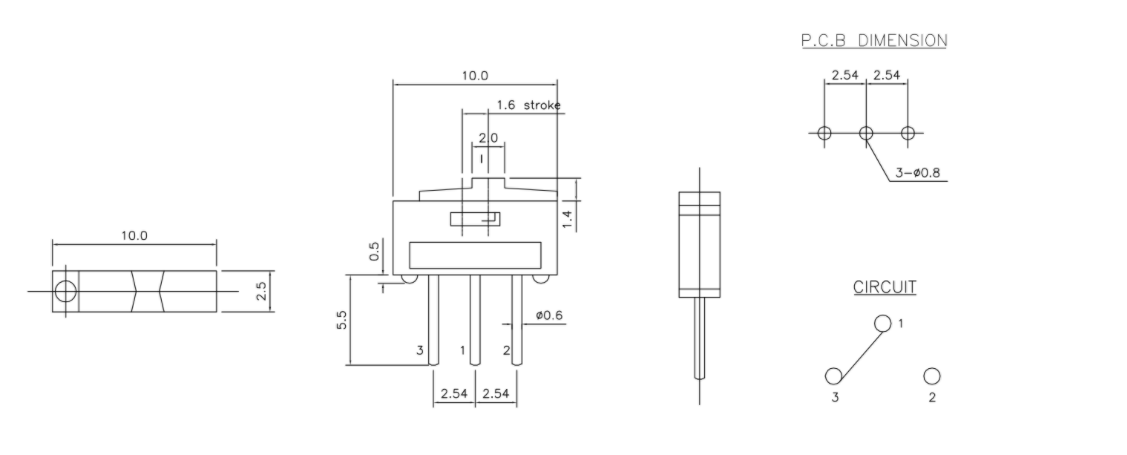

尺寸/Dimension	10.00* 6.40mm
使用壽命/Operating life	2000 cycles
最大額定值/Maximum ratings	(0.5A 12V)(0.3A 24V)
絕緣電阻/Insulation resistance	30MΩ min
耐電壓/Voltage proof	1 minute 250V AC
