IPX7/8-PUSH BUTTON SWITCH

PS-11FH-S
MINIATURE PUSH BUTTON WATERPROOF SWITCHS

PS-11FH-S

DIP horizontal type, no locking,Waterproof reset push switch 5.0mm*9.80mm H=15.20mm FEATURE Small contact resistance, accurate operating force error, diversified specifications and other advantages miniature waterproof APPLICATIONS Suitable for consumer products, computer products, test instruments, communication equipment, etc


Manual

COMMON SPECIFICATIONS

CharacteristicsSpecification
工作溫度範圍/Operating temperature range-30℃~ + 85℃
操作力/Operating force250gf,350gf
尺寸/Dimension5.0mm* 9.80mm
使用壽命/Operating life100,000 cycles
最大額定值/Maximum ratings0.4VA at 28V AC or DC Max
行程/Travel1.1mm
接触电阻/Contact Resistance
MAX50mΩ

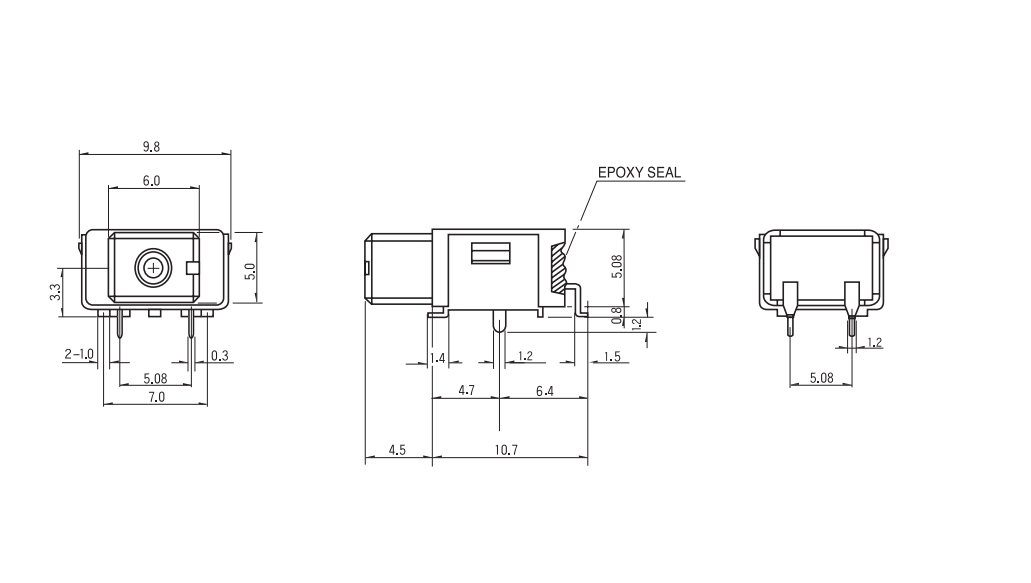

DIMENSIONS

ModelDimensions

PS-11FH-S


PS-11FH-S


PS-11FH-S
