IPX7/8-TOGGLE SWITCH

TG-SW2TE series
Waterproof Twizz switch

TG-SW2TE series

Vertical Horizontal DIP IP67 waterproof switch FEATURE Small contact resistance, accurate operating force error, diversified specifications and other advantages miniature waterproof APPLICATIONS Suitable for consumer products, computer products, test instruments, communication equipment, etc


Manual

COMMON SPECIFICATIONS

CharacteristicsSpecification
CONTACT RATING Max 0.4 VA max @ 48 VAC or DC.
MECHANICAL LIFE minimum 40,000 operations.
CONTACT RESISTANCE50 m Ω max.
INSULATION RESISTANCE 1,000MΩmin.
DIELECTRIC STRENGTH 500 Vrms min.@sea level.
OPERATING TEMPERATURE-20°C to 85°C.

HOW  TO  ORDER

                       TG-SW2TE series

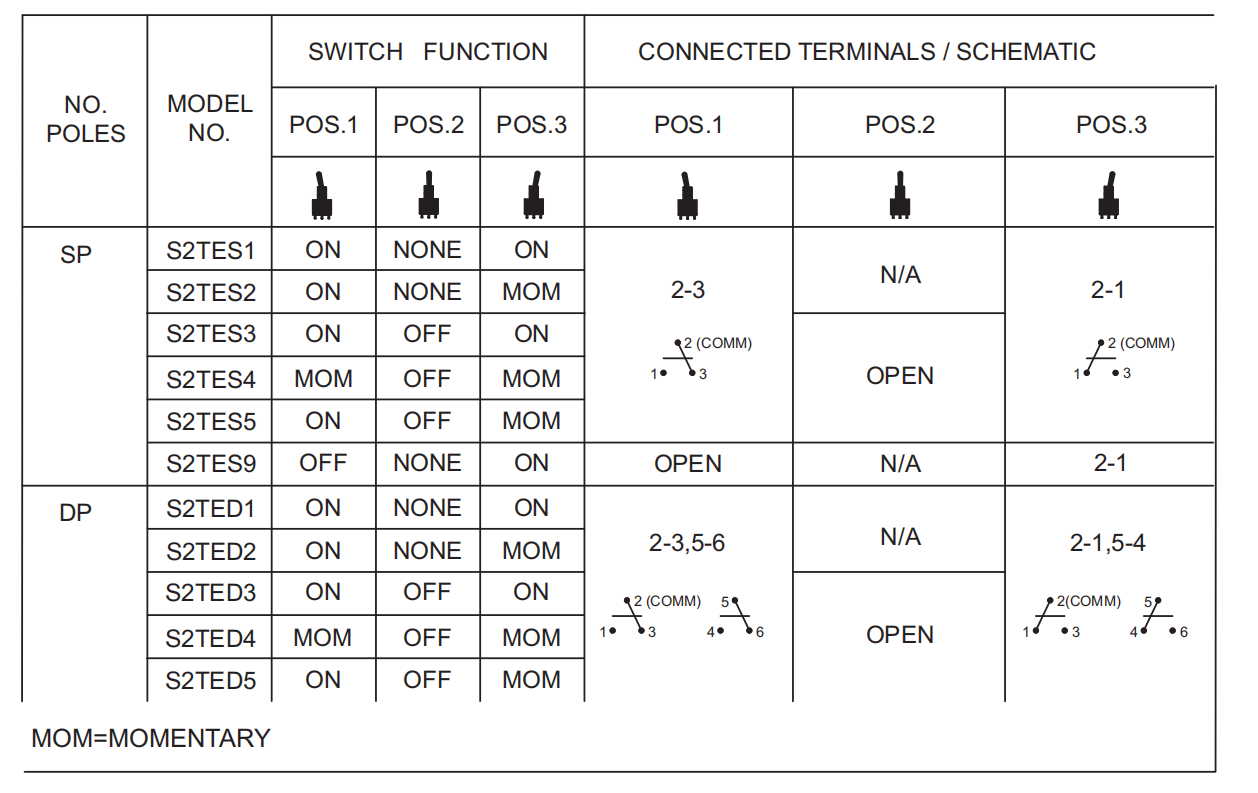

SWITCH  FUNCTION

                       TG-SW2TE series
