ROTARY DIP SWITCH 編碼開關

RS-09 series
RS-09 series
RS-09 series
NEW MINI ROTARY DIP SWITCHES

RS-09 series

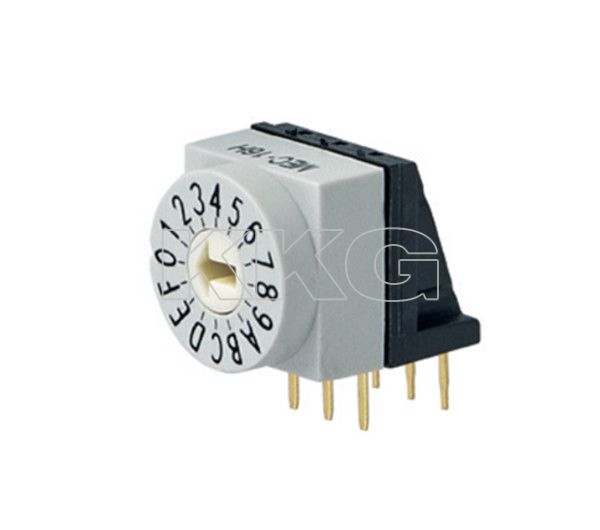

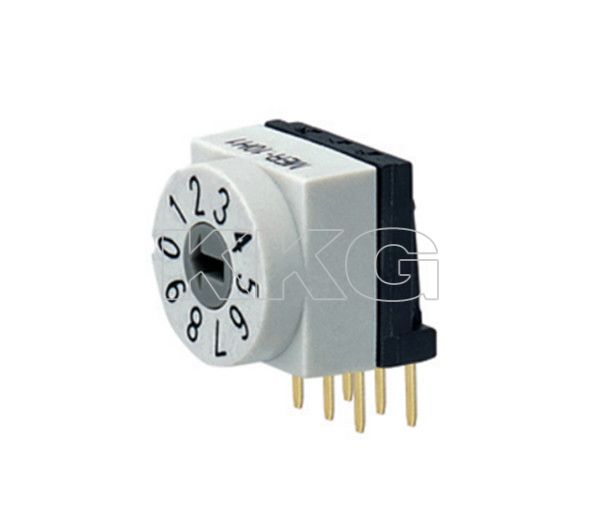

10.00mm*10.00mm NEW MINI ROTARY DIP SWITCHESFEATURE ‧10.00mm*10.00mm ‧Horizontal DIP ‧0-9,0-F Position APPLICATIONS ‧ Mainly used in automotive electronics, multimedia audio, instruments and meters, household appliances, smart home, computer, medical equipment and other fields.


Manual

COMMON SPECIFICATIONS


CharacteristicsSpecification
接觸電阻/Contact resistance80mA
操作力/Operating force700gf
尺寸/Dimension10.00*10.00mm
使用壽命/Operating life10000  cycles
絕緣電阻Insulation resistance100mA
防水等級/waterproof levelIP67


DIMENSIONS

Unit:mm

ModelDimensions

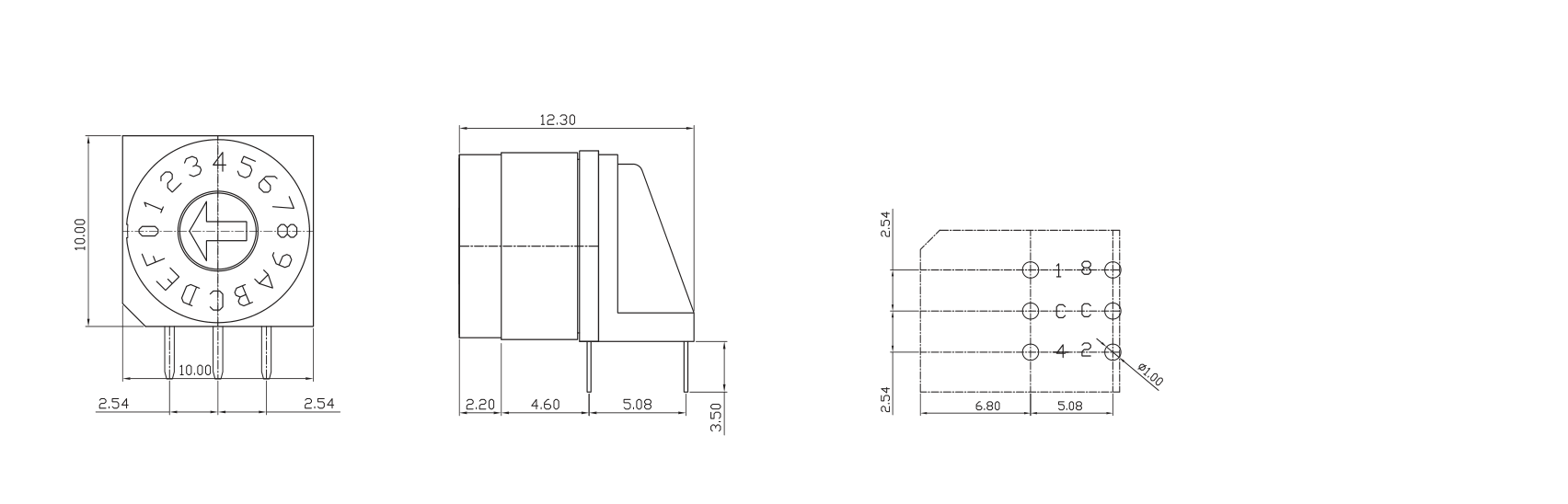

RS-09-01RS-09 series





RS-09 series


Unit:m

Unit:mm

ModelDimensions

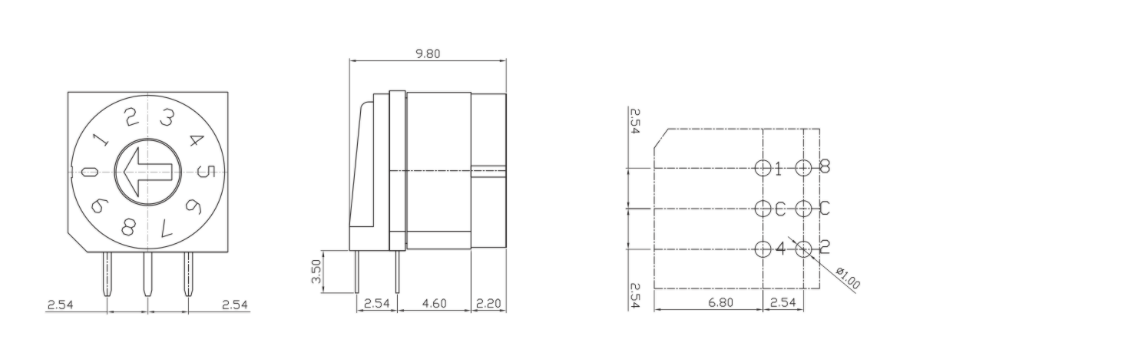

RS-09-02RS-09 series



RS-09 series

Unit:mm
