ROTARY DIP SWITCH 編碼開關

RS-11 series
RS-11 series
RS-11 series

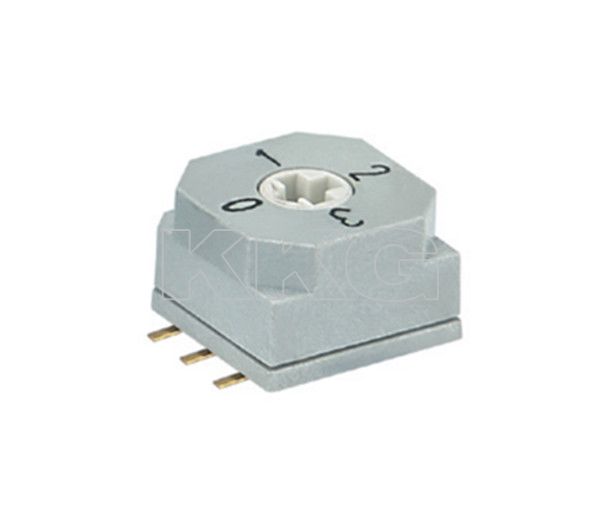

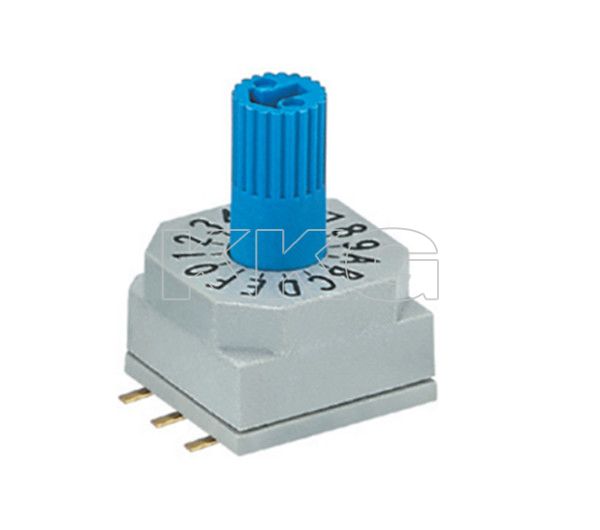

NEW MINI ROTARY DIP SWITCHES

RS-11 series

10.00mm*10.00mm NEW MINI ROTARY DIP SWITCHESFEATURE ‧10.00mm*10.00mm ‧Vertical SMD ‧0-3,0-F, Position APPLICATIONS ‧ Mainly used in automotive electronics, multimedia audio, instruments and meters, household appliances, smart home, computer, medical equipment and other fields.


Manual

COMMON SPECIFICATIONS


CharacteristicsSpecification
接觸電阻/Contact resistance80mA
操作力/Operating force700gf
尺寸/Dimension10.00*10.00mm
使用壽命/Operating life10000  cycles
絕緣電阻Insulation resistance100mA
防水等級/waterproof levelIP67


DIMENSIONS

Unit:mm

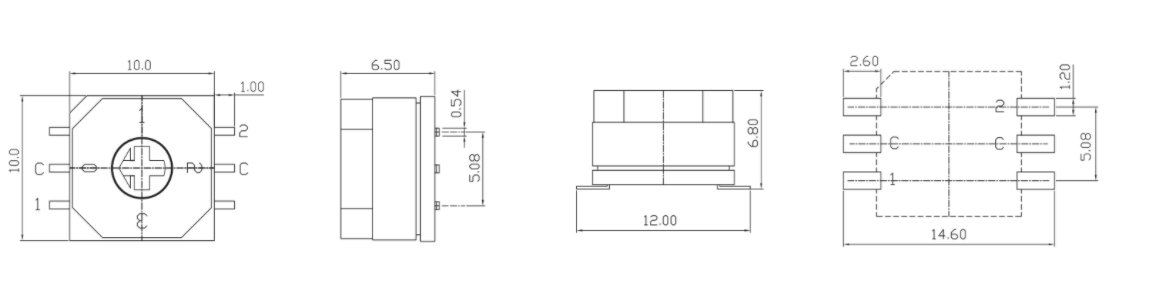

ModelDimensions




RS-11-01RS-11 series





RS-11 series


Unit:m

Unit:mm

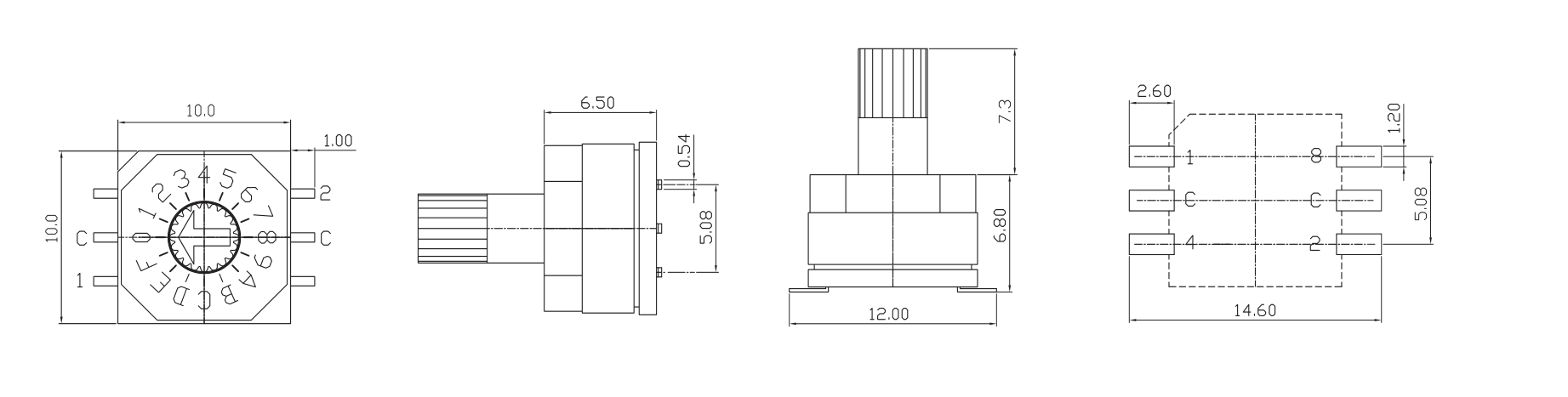

ModelDimensions


RS-11-02RS-11 series



RS-11 series

Unit:mm
