ROTARY DIP SWITCH 編碼開關

RS-15 series
RS-15 series
RS-15 series
RS-15 series
RS-15 series
NEW MINI ROTARY DIP SWITCHES

RS-15 series

10.00mm*10.00mm NEW MINI ROTARY DIP SWITCHESFEATURE ‧10.00mm*10.00mm ‧Vertical DIP ‧0-3,0-5, 0-7,0-9 Position APPLICATIONS ‧ Mainly used in automotive electronics, multimedia audio, instruments and meters, household appliances, smart home, computer, medical equipment and other fields.


Manual

COMMON SPECIFICATIONS


CharacteristicsSpecification
接觸電阻/Contact resistance80mA
操作力/Operating force700gf
尺寸/Dimension10.00*10.00mm
使用壽命/Operating life10000  cycles
絕緣電阻Insulation resistance100mA
防水等級/waterproof levelIP67

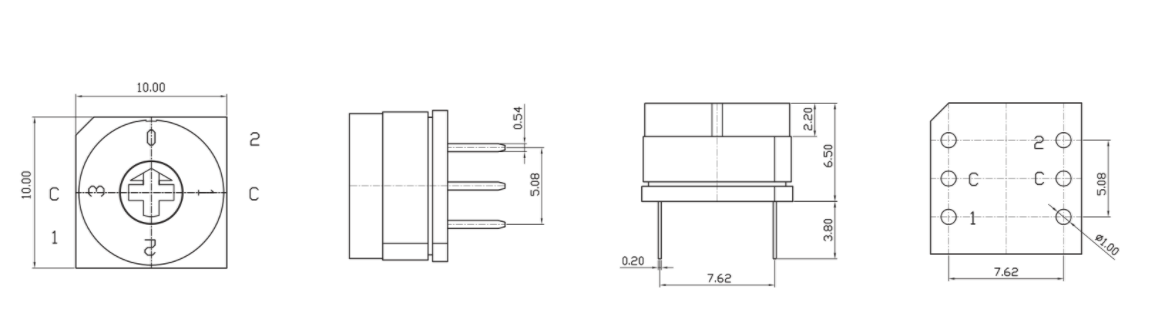

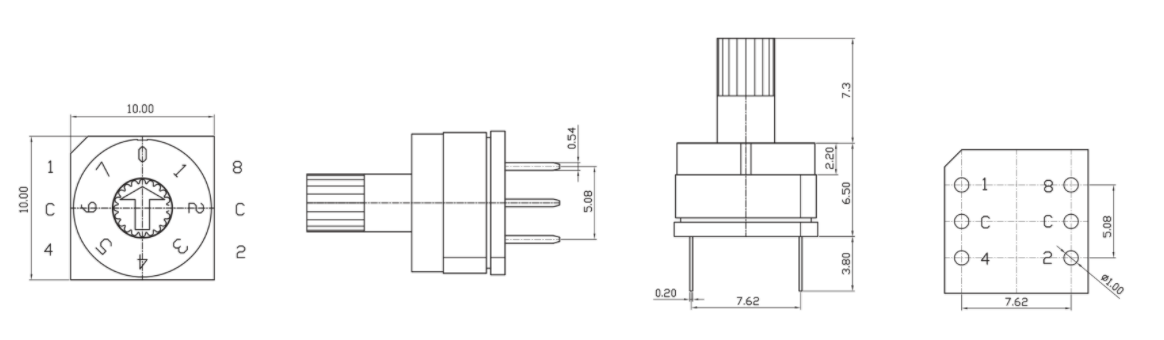

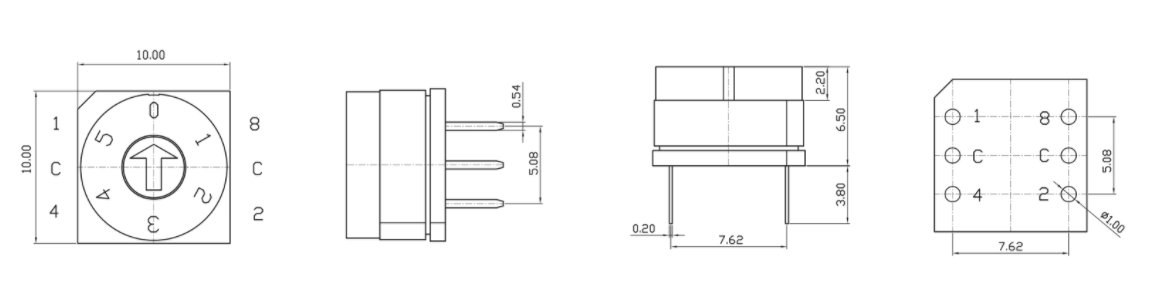

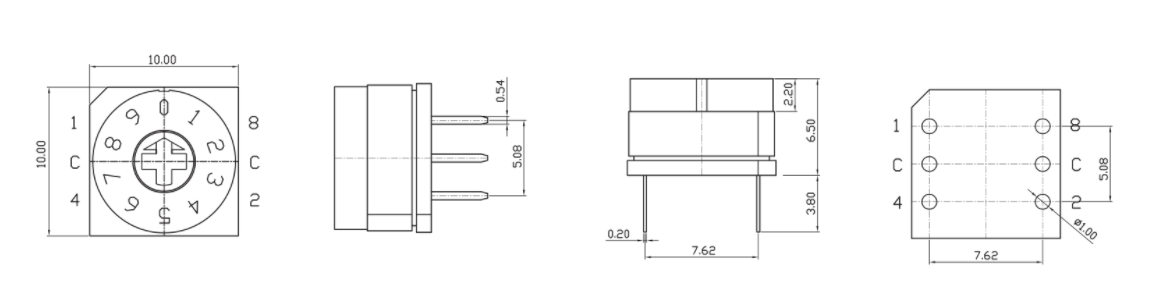

DIMENSIONS

Unit:mm

ModelDimensions




RS-15-01RS-15 series

RS-15 series


Unit:m

Unit:mm

ModelDimensions


RS-15-02RS-15 series

RS-15 series


Unit:mm

ModelDimensions


RS-15-03RS-15 series

RS-15 series


ModelDimensions


RS-15-04RS-15 series

RS-15 series
