ROTARY DIP SWITCH 編碼開關

RS-16 series
RS-16 series
RS-16 series
RS-16 series
RS-16 series

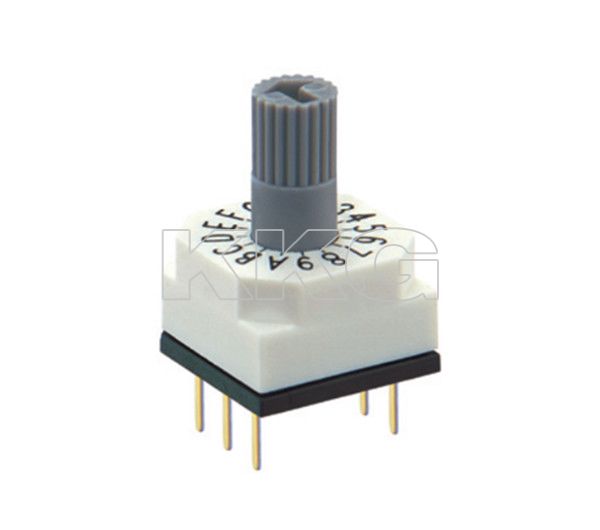

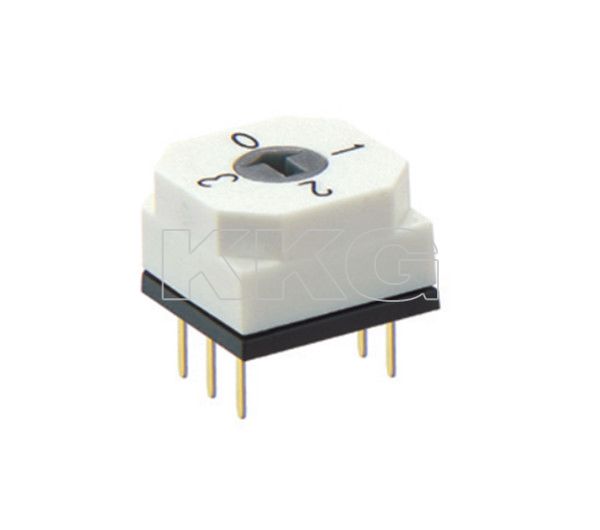

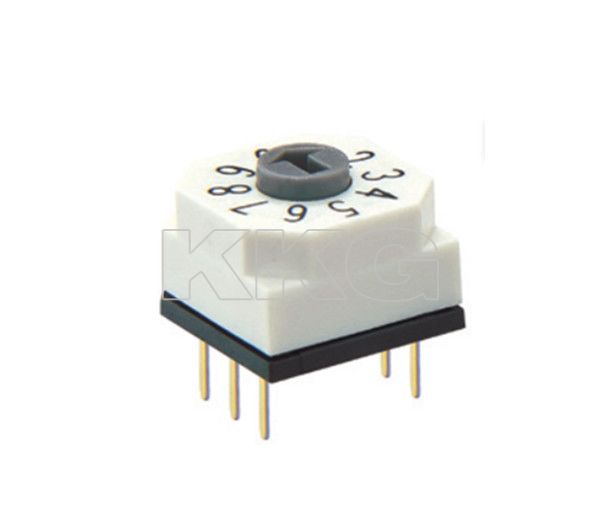

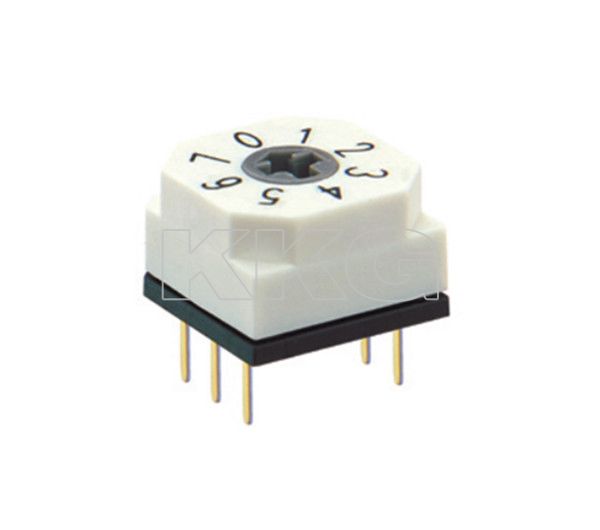

NEW MINI ROTARY DIP SWITCHES

RS-16 series

10.00mm*10.00mm NEW MINI ROTARY DIP SWITCHESFEATURE ‧10.00mm*10.00mm ‧Vertical DIP ‧0-3,0-7,0-9, 0-F Position APPLICATIONS ‧ Mainly used in automotive electronics, multimedia audio, instruments and meters, household appliances, smart home, computer, medical equipment and other fields.


Manual

COMMON SPECIFICATIONS


CharacteristicsSpecification
接觸電阻/Contact resistance80mA
操作力/Operating force700gf
尺寸/Dimension10.00*10.00mm
使用壽命/Operating life10000  cycles
絕緣電阻Insulation resistance100mA
防水等級/waterproof levelIP67

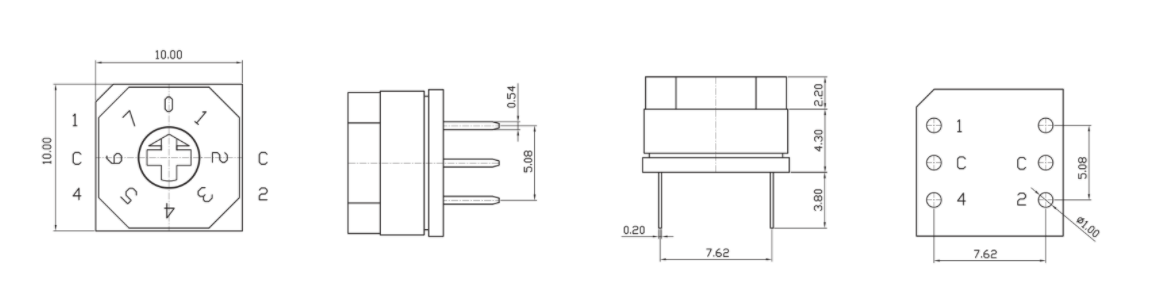

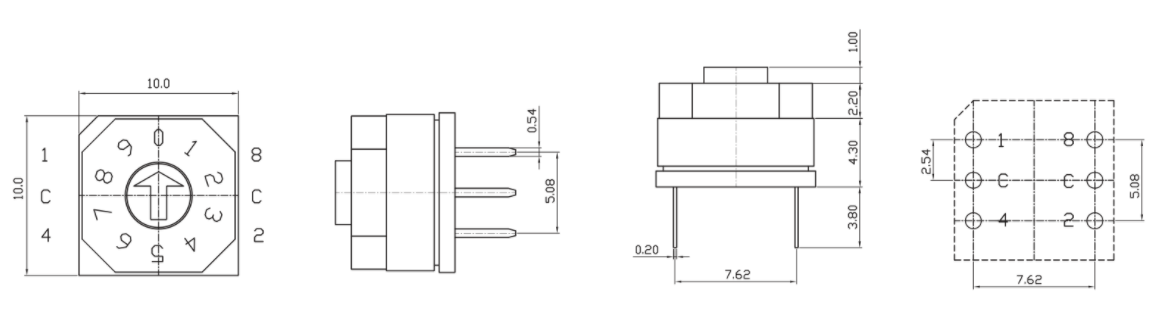

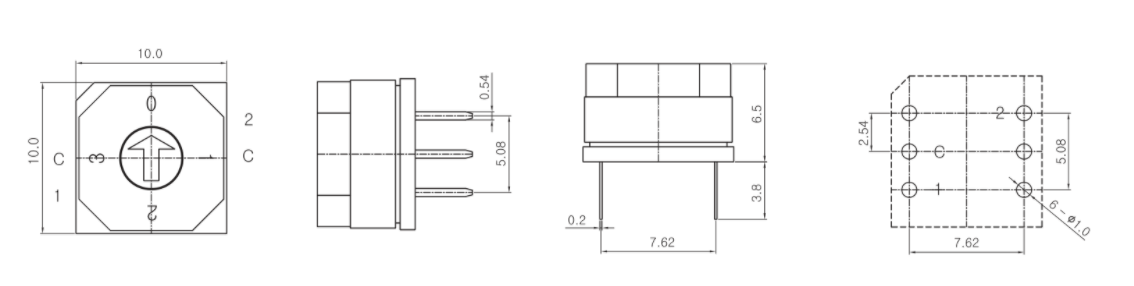

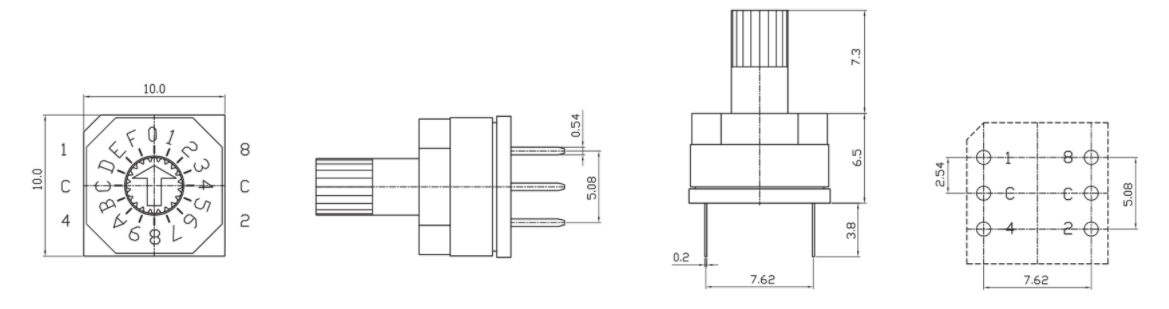

DIMENSIONS

Unit:mm

ModelDimensions




RS-16-01RS-16 series

RS-16 series


Unit:m

Unit:mm

ModelDimensions


RS-16-02RS-16 series

RS-16 series


Unit:mm

ModelDimensions


RS-16-03RS-16 series

RS-16 series


ModelDimensions


RS-16-04RS-16 series

RS-16 series
