TOGGLE SWITCH 鈕子開關

TG-MT06 series
TG-MT06 series
TG-MT06 series

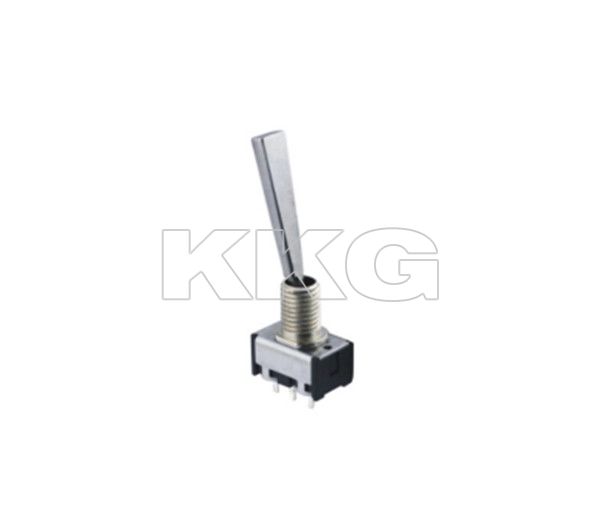

Toggle switch

TG-MT06 series

Vertical DIP toggle switch FEATURE Small contact resistance, accurate operating force error, diversified specifications and other advantages APPLICATIONS Suitable for consumer products, computer products, test instruments, communication equipment, etc


Manual

COMMON SPECIFICATIONS

CharacteristicsSpecification
Contact resistance  <20mΩ
Insulation resistance500VDC≥1000MΩ
Withstand voltage1500VAC
Electrical life1,0000 cycles
Mechanical life 4,0000 cycles
Operating temperature-25°C to 85°C.


DIMENSIONS

ModelDimensions

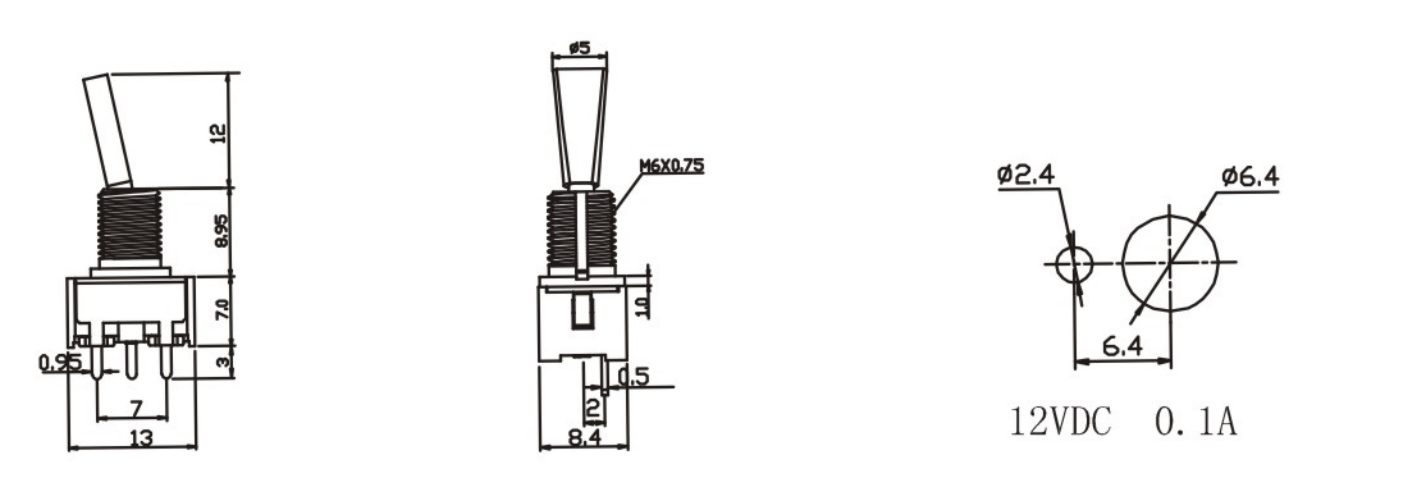

TG-MT06-E01

TG-MT06 series


TG-MT06 series

ModelDimensions

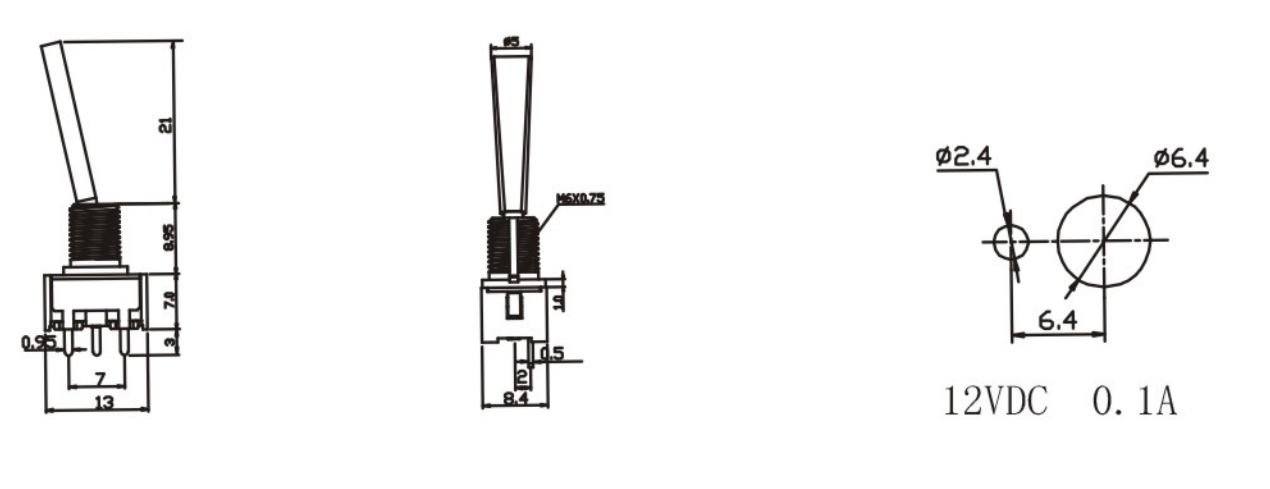

TG-MT06-E02

TG-MT06 series


TG-MT06 series
