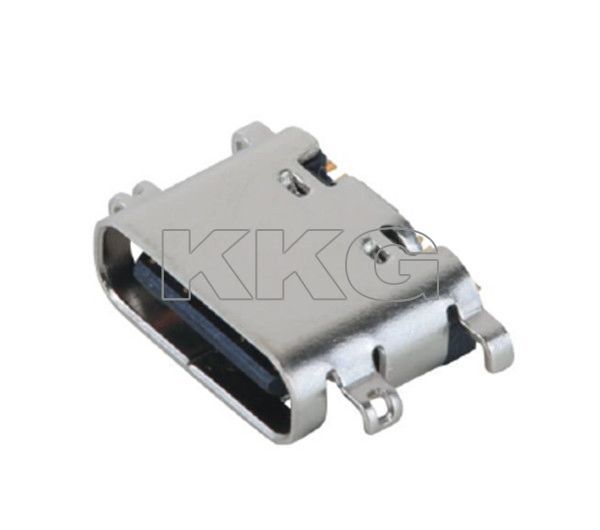

USB 3.1 TYPE-C
TYPE-CF-16P-OT0.8
TYPE-CF-16P-OT0.8
FEATURE
‧ 8.94mm*6.50mm
‧ 90 degrees SMD
‧Reflow soldering
APPLICATIONS
‧ Used in mobile, audio-visual, automotive electronics, multimedia, electrical appliances, Electronic toys visible interphone MP3, MP4, DVD
Manual
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|
| 额定电流/Current Rating | 5.0A MAX |
|---|
| 额定电压/Voltage Rating | 100VAC |
|---|
| 接触电阻/Contact Resistance | 40 millionhm max |
|---|
| 尺寸/Dimension | 8.94mm*6.50mm |
|---|
| 温度/temperature range | -30℃~85℃ |
|---|
| 绝缘电阻/Insulation Resistance | 100 megohms min |
|---|

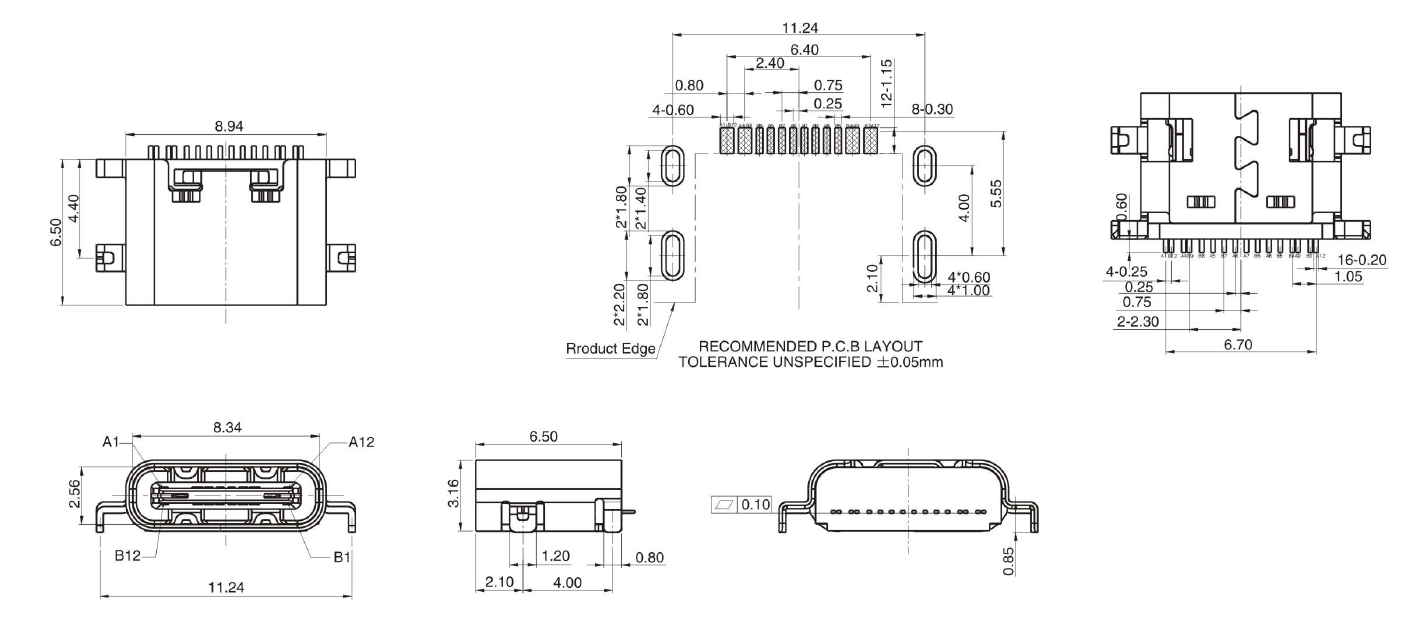

DIMENSIONS
Unit:mm
| Model | Dimensions |
|---|
TYPE-CF-16P-OT0.8 |  |
Unit:mm
