MULTI-FUNCTION SWITCH 多功能開關
Joystick potentiometer

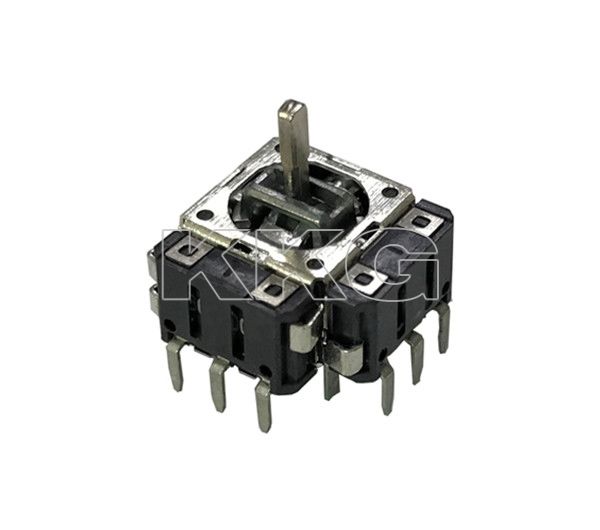

TM-1106
Rocker switch
FEATURE
‧ 11.00mm*11.00mm
‧ Loop operation
‧ Wave soldering
APPLICATIONS
‧ Digital cameras, automobiles, health care products, robots and industrial machinery, game consoles, drones.
Manual
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|
| 全阻值/Total resistance | 10KA |
|---|
| 额定功率/Rated power | 0.0125W |
|---|
| 工作电流/Working current | 50MA DC12V |
|---|
| 滑柄行程/Slide stroke | 2mm |
|---|
| 操作力距/Operating torque | 140±50gf |
|---|
| 寿命/life | 1000000 Times |
|---|
DIMENSIONS
Unit:mm
| Model | Dimensions |
|---|
TM-1106 |  |
Unit:mm
